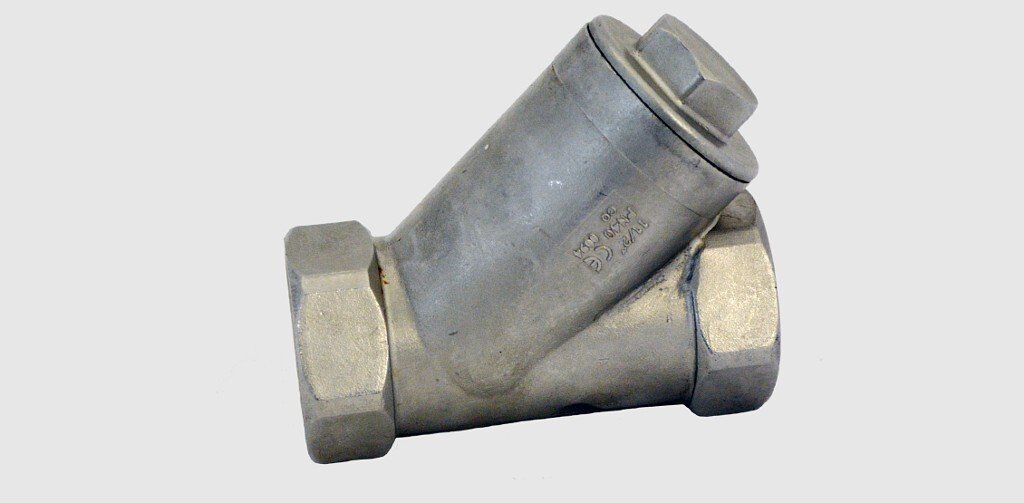

Y- STRAINER
- Series #Y800-SS
- 800 PSI
- 316 Body, NPT ends
- Size 1/2" to 2" Size Range
Features & Benefits
Investment Castings For Body
Pressure Rating: 800PSI (PN40)
Threaded Ends: ANSI B2.1,BS 21,DIN 259/2999
Material: CF8M,CF8,CF3M,WCB
Pressure Test: API 598

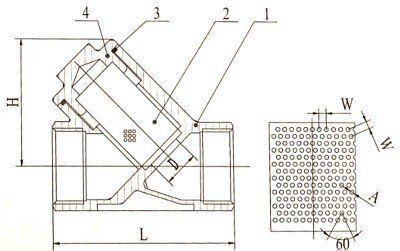

Schematic Diagram

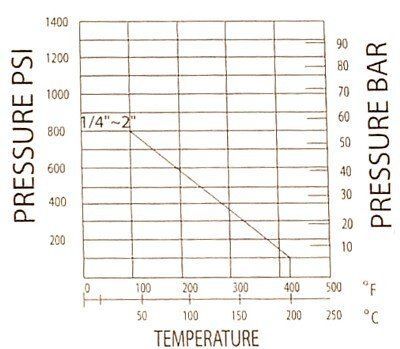

Pressure & Temperature Chart

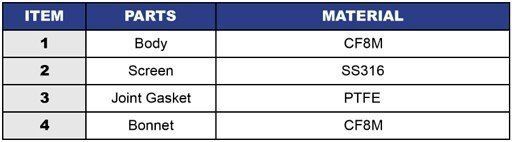

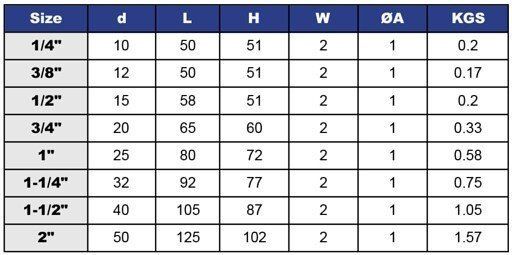

Materials & Measurements
