SERIES #31276
- Gate Valve
- 200 PSI
- 316
- NPT/ SW
- Size 1/2" to 2"
- Temp -20° to 350° F
Features & Benefits
Investment Casting
Screwed-in Bonnet
Non-Rising Stem
Solid Wedge Disc
Hand Wheel Operation
Threaded Ends Conform to ASME BI.20.1 (NPT)
200 W.O.G.
Max Working Temperature: 350ºF
Test and Inspection to API 598

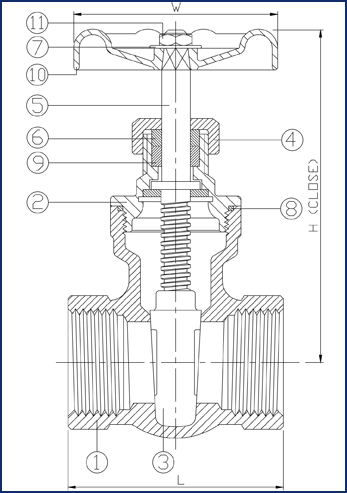

Schematic Diagram

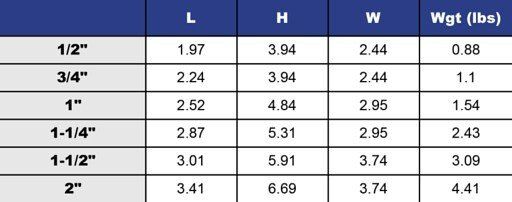

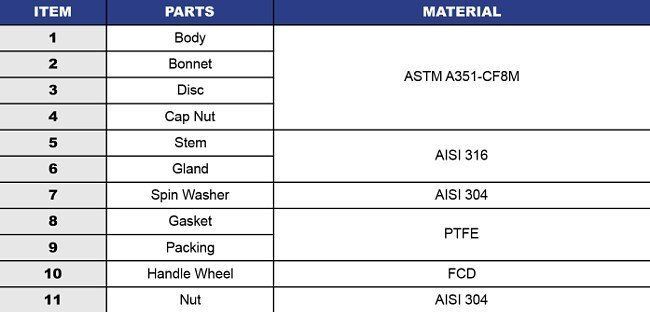

Materials & Measurements
