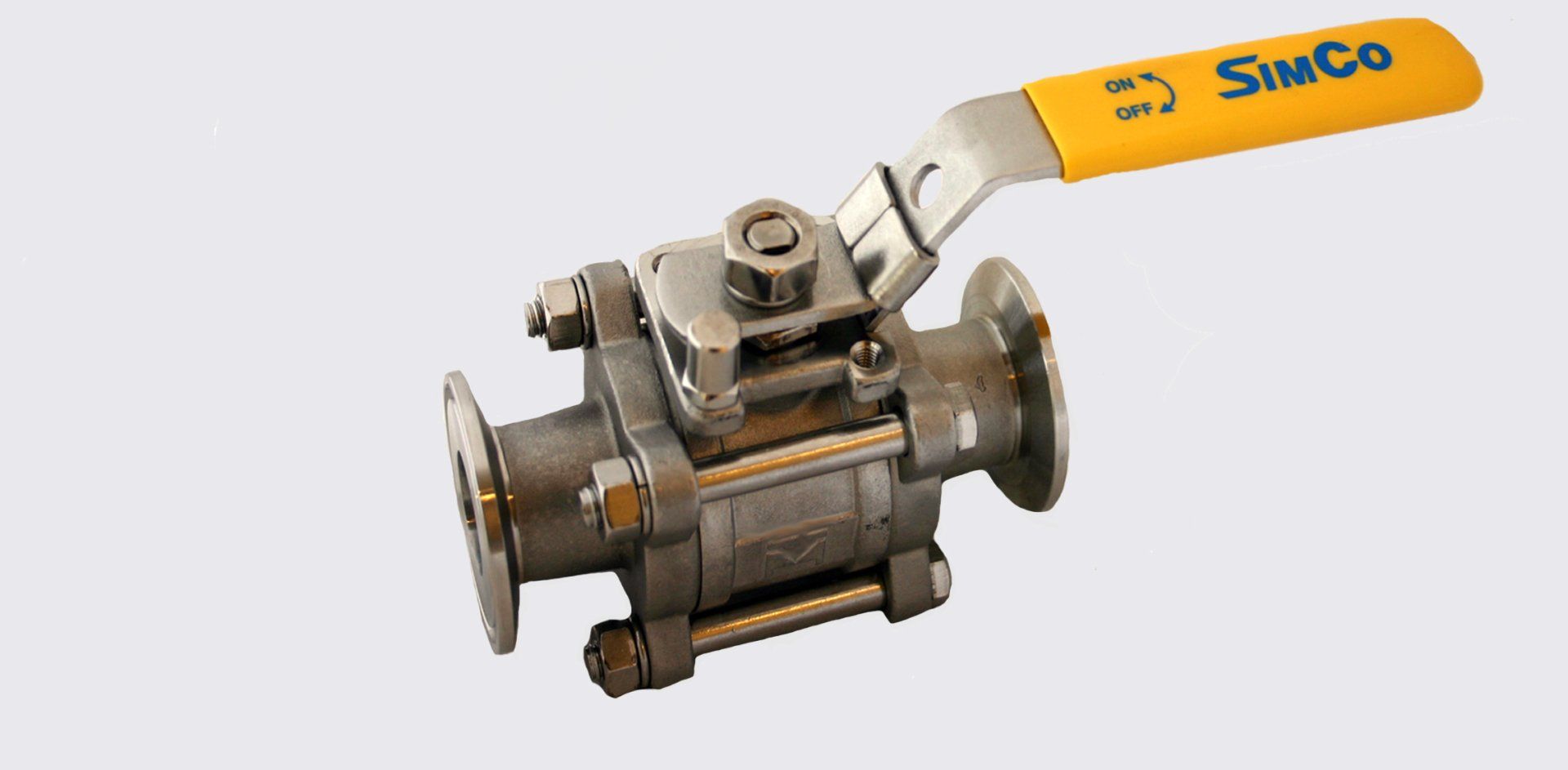

SERIES #69
- 3-Piece Full Port NPT
- 1000 W.O.G.
- 316
- Clamp End
- Size 1/2" to 4"
- 240 Grit Standard
Features & Benefits
Tube Full Port Design
True tube full port construction improves flow characteristics and helps eliminate build up of process media.
3-Piece Design
Swing out construction makes the valve easy to repair in line.
Blow-Out Proof Stem
Stem is bottom loaded to prevent removal when valve is in service.
Locking Handle
Enables plant personnel to secure valve in open or closed position when manually operated.
Investment Cast
ISO 5211 Mounting Pad
240 Grit Standard: Internal Polish
High polish standard finish to meet a wide range of applications.
TFM Standard Seating Material
Allows valve to cover a wide range of media/temperature applications.

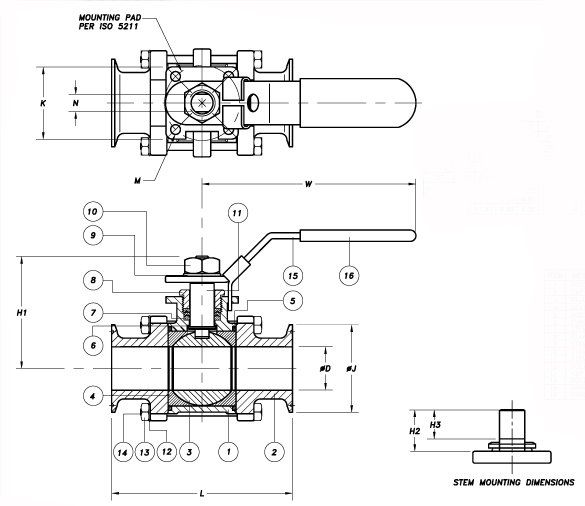

Schematic Diagram

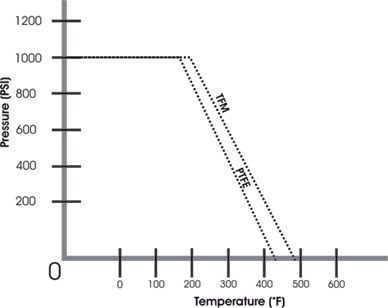

Pressure & Temperature Chart
Operating / Test Conditions
- Temperature Range (RTFE) -20°F to 500°F
- Maximum working pressure: 1000 W.O.G
- Valves inspected and tested to API598
- All Materials comply with applicable A S TM material specifications
- USDA and FDA material requirements
Options
- Clamp end, tube butt weld, extended butt weld ends
- Polish and electric polish to custom specifications
- Cavity filled seats

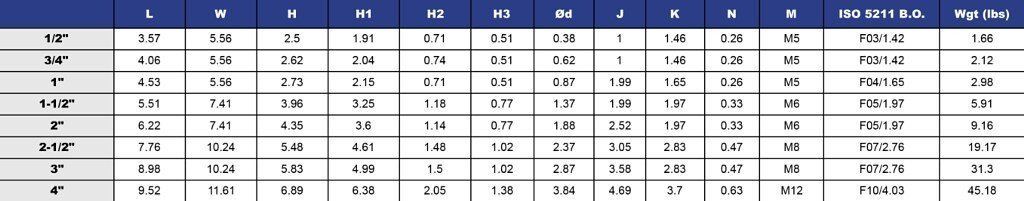

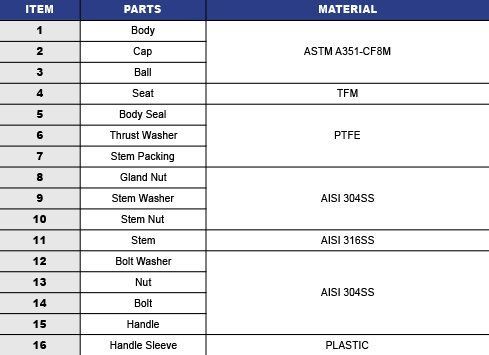

Materials & Measurements
