SERIES #26116
- Flanged Gate Valve
- ANSI 150
- 316
- Size 1" to 12"
Features & Benefits
Bolted Cover
Swing Type
Flanged Ends Conform to ASME B16.5
Face to Face: ANSI B16.10
Wall Thickness: ANSI B16.34
Test and Inspection to API 598
For Horizontal or Vertical Lines

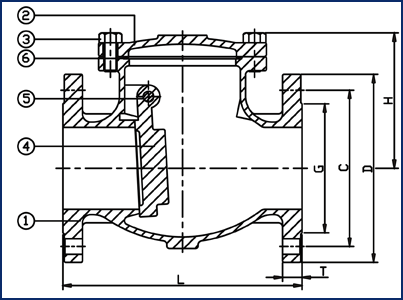

Schematic Diagram

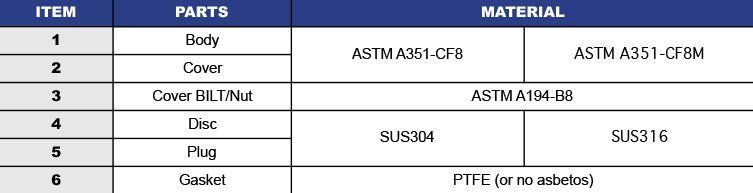

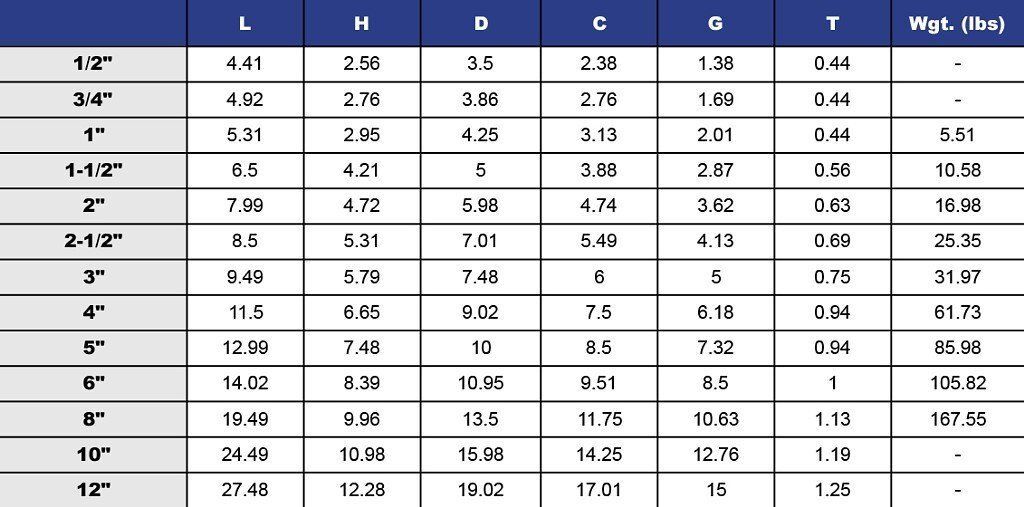

Materials & Measurements
