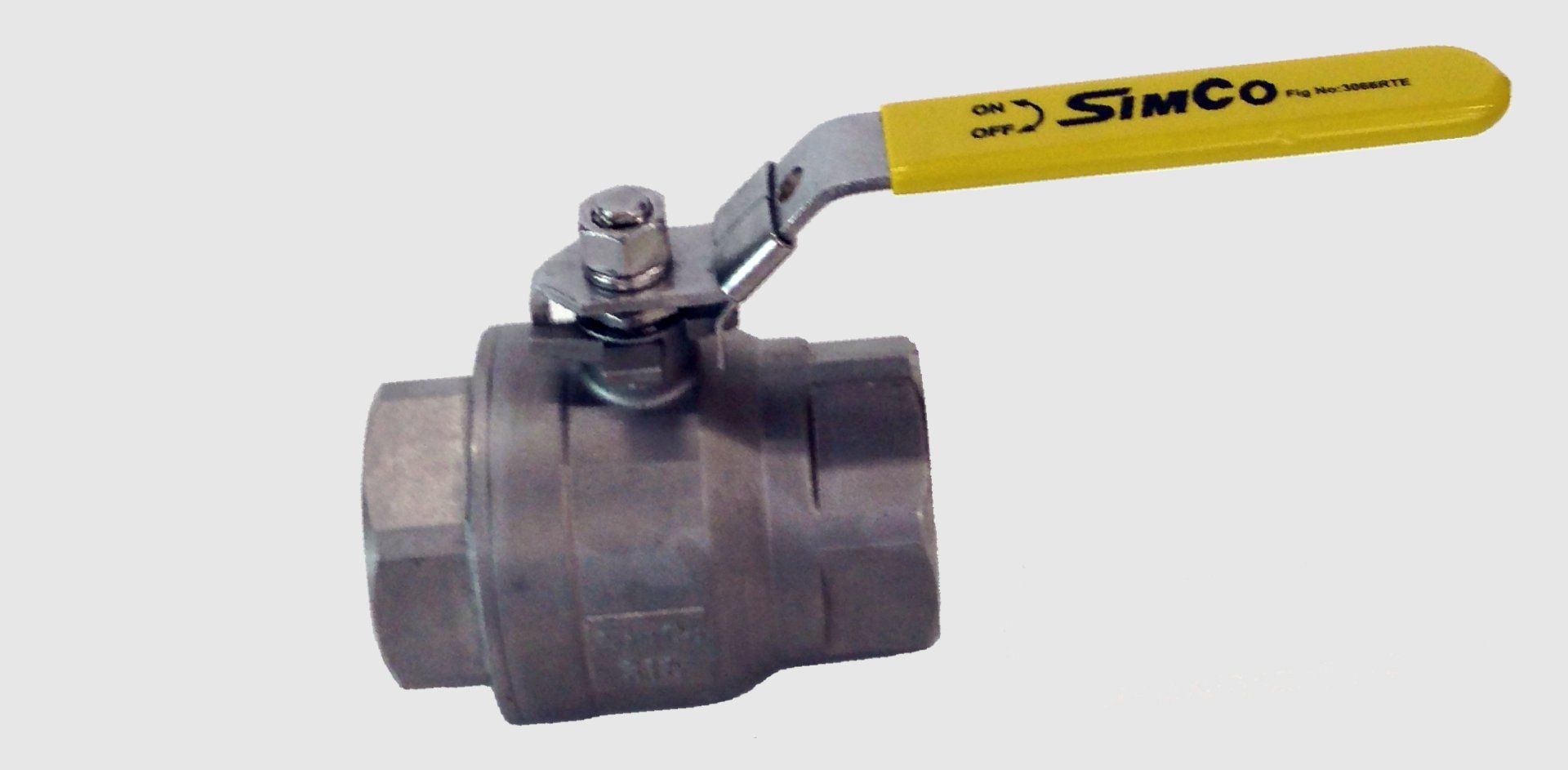

SERIES #30

  • 2-Piece Full Port NPT
  • 1000 W.O.G.
  • 316
  • Size 1/4" to 3"
  • Temp: -20° F to 450° F
  • Locking Handle Standard
FULL PDF CUT SHEET

Features & Benefits

Economical 2-Piece Design


Full Port

Full port construction improves flow characteristics for greater process efficiencies



Blow-out Proof Stem

Stem is bottom loaded to prevent removal when valve is in service.



Locking Handle

Enables plant personnel to secure valve in open or closed position when manually operated.




Corrosion Resistant

Made of 316 Stainless Steel (A351 GR.CF8M) for superior chemical resistance and longer service life.



Investment Cast

Improves dimensional control and reduces porosity.

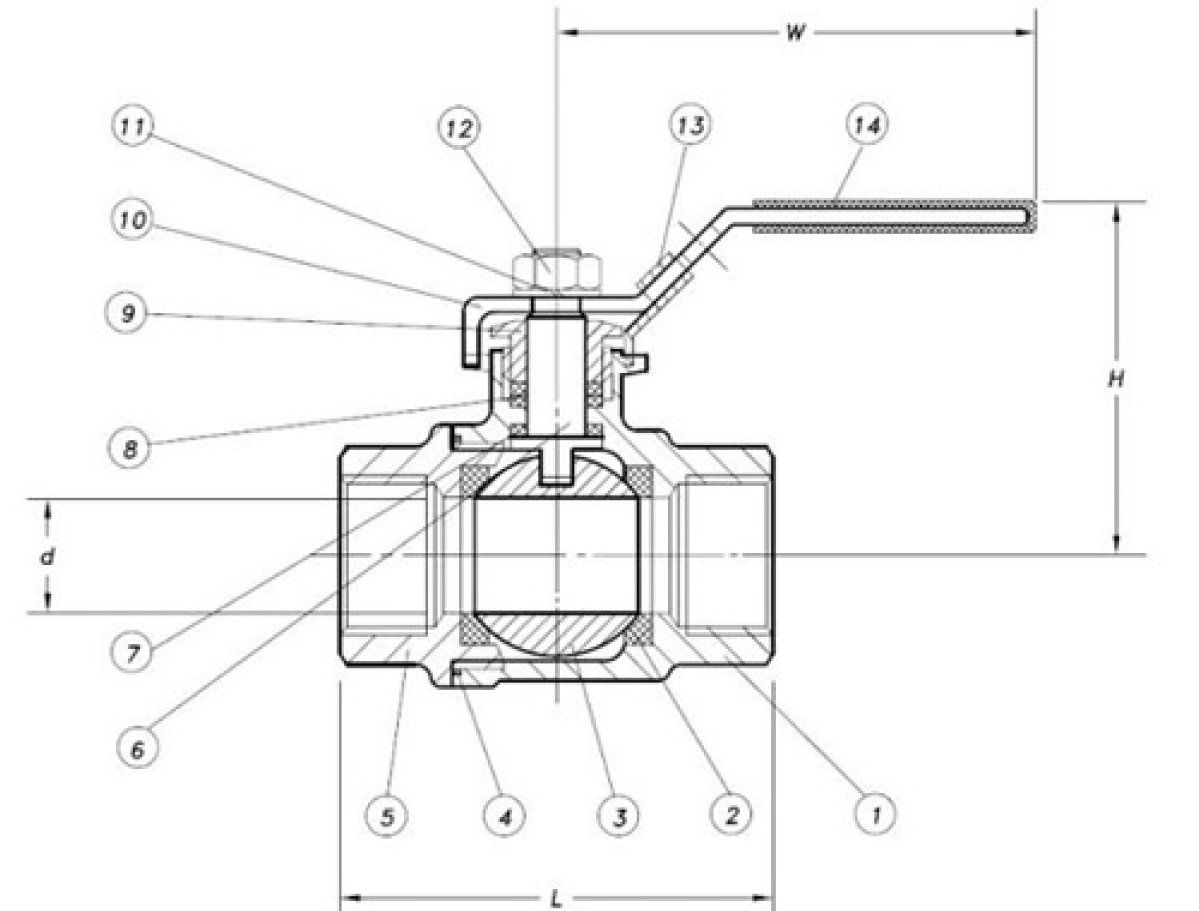

Schematic Diagram

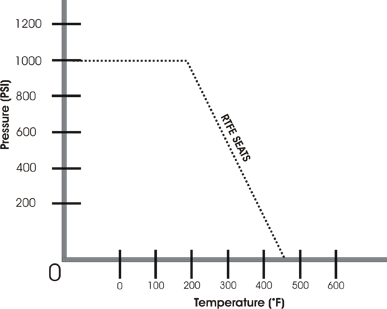

Pressure & Temperature Chart

Operating / Test Conditions

  • Temperature Range (RTFE) -20°F to 450°F


  • Maximum working pressure: 1000 W.O.G


  • NPT ENDS conform to ASME B1.20.1


  • Applicable standards:  Test and Inspection API 598

Options

  • Oval Handles

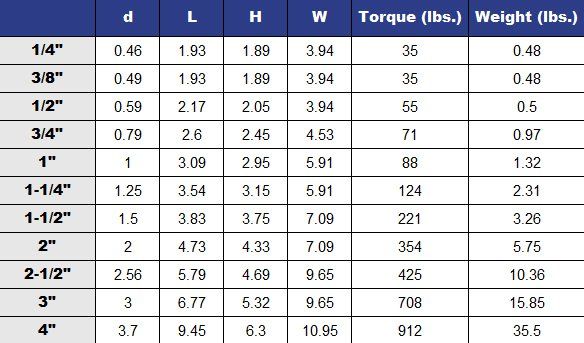

Materials & Measurements

Investment Casting Ball Valve, Standard Bore,

Screw End, 2000/1500 WOG

  • Investment Casting for Body and Cap



  • Threaded Ends: ANSI B2, BS 21, DIN 259/2999



  • Internal Entry Blow-Out Proof Stem



  • Pressure Rating: 1000psi (PN63)

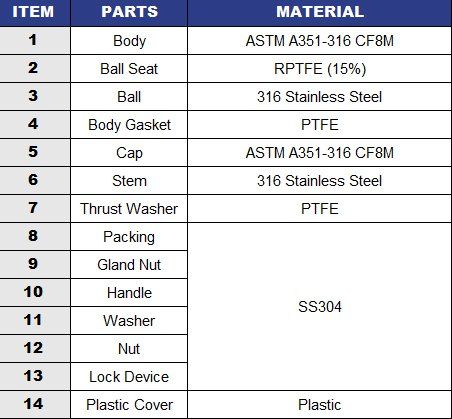

  • Material: See Table (Right)



  • Pressure Test: API 598
