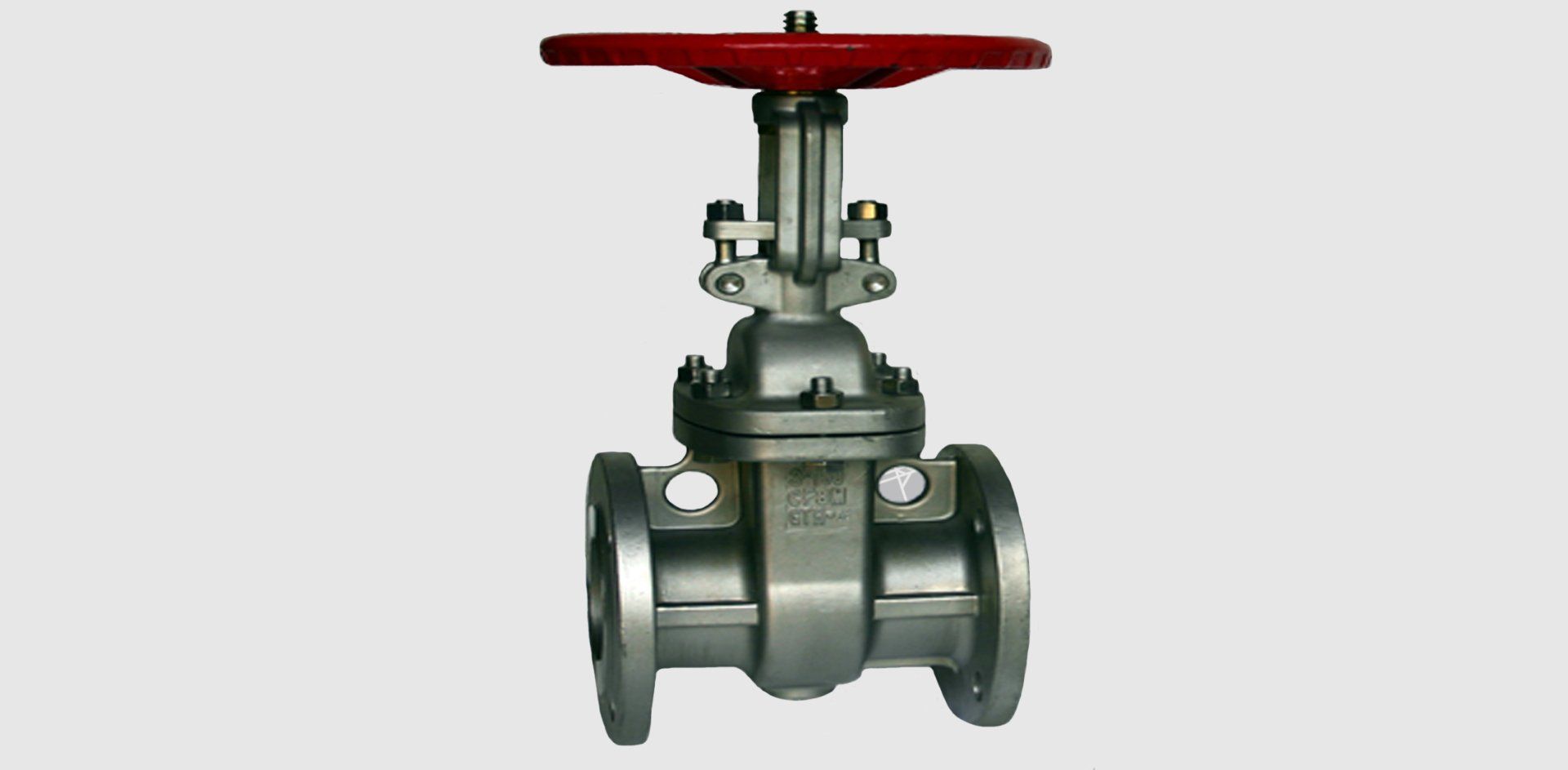

SERIES #36116

  • Flanged Gate Valve
  • ANSI 150
  • 316
  • Size 1 1/2" to 14"
FULL PDF CUT SHEET

Features & Benefits

Outside Screw and Yoke



Bolted Bonnet



Flexible Wedge Fully Guided



Integral Seats



Rising Stem and Non-Rising Handwheel



Flanged Ends Conform to ASME B16.5

Face to Face: ANSI B16.10

Wall Thickness: ANSI B16.34



Test and Inspection to API 598



Graphoil Packing for Long Valve Life and High Temperature Applications

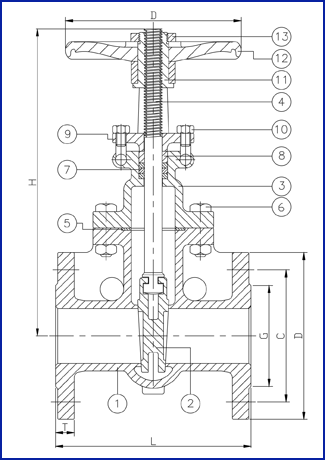

Schematic Diagram

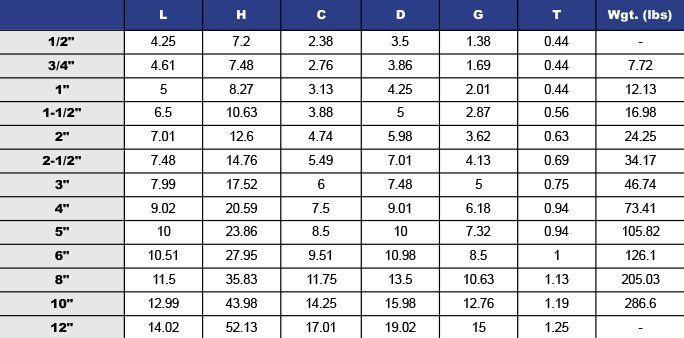

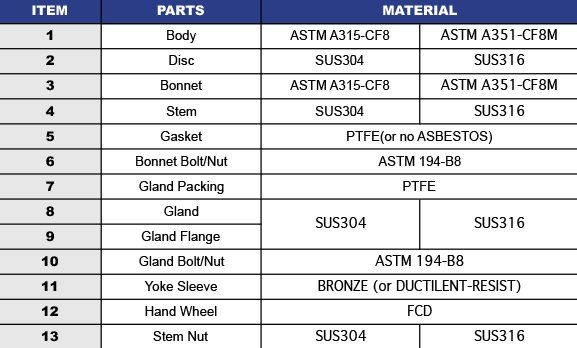

Materials & Measurements
