EXTENDED CYCLE LIFE
(1 million cycles)

• Low Friction Bearings
• Polished Bore
• Precision Machined Gears
• Epoxy Coated Springs
• Dry or Lubricated Air

EXTERIOR COATINGS

• Tested to ASTM B117-73 (500 hrs. salt spray)
• Anodized body (ASTM 6063) or nickel plated
• End covers; epoxy-polyester coated or nickel plated

MOUNTING STYLES

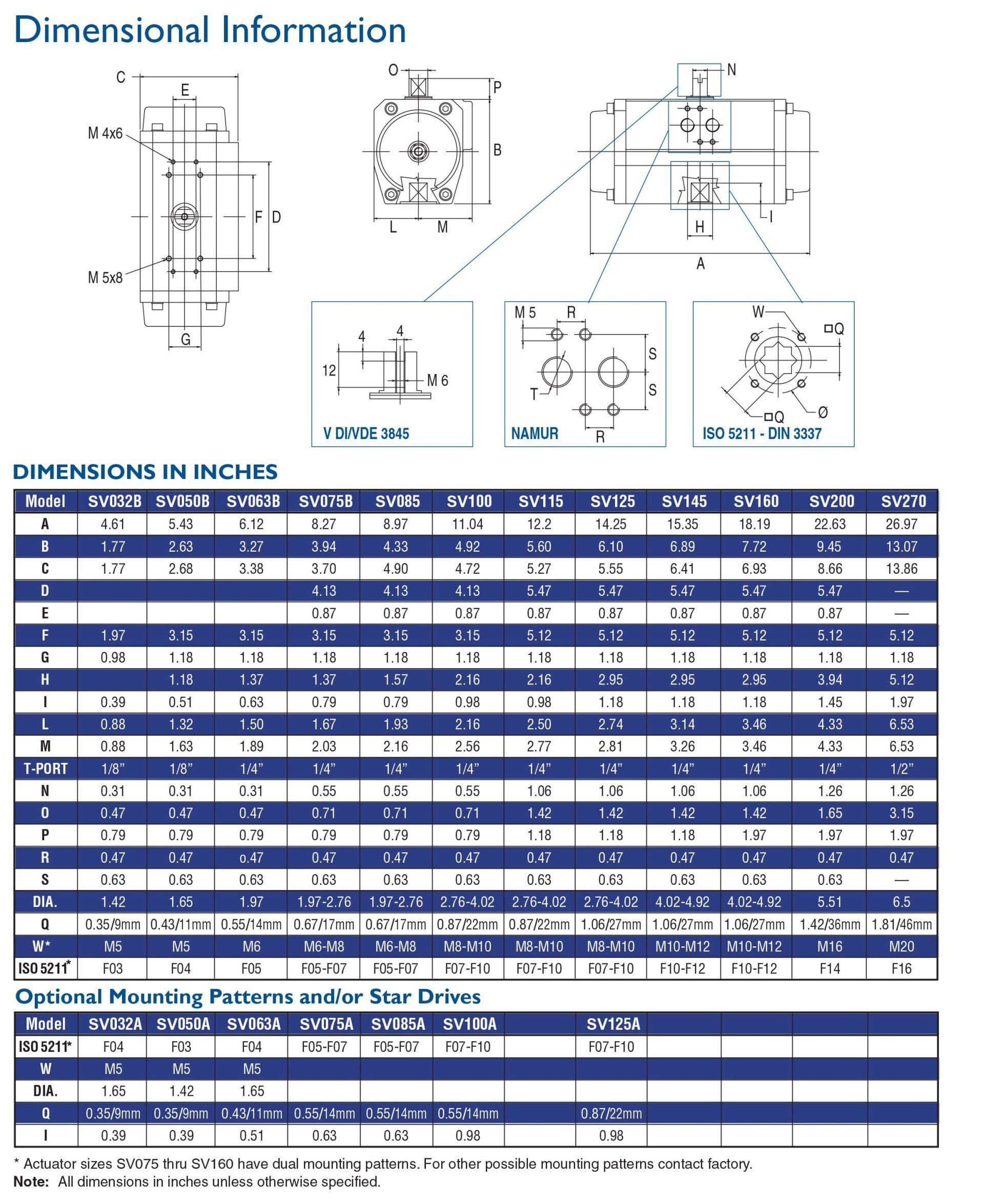

• NAMUR dimensions for accessories
• ISO dimensions for valve mounting
• Shaft variations available for direct mounting
• Female star drive output shaft
• Independent travel stops ±4º each direction

SAFETY

• Precompressed spring cartridge
• Blowout proof shaft
• Visual indicator

SPECIFICATIONS

• Operating Pressure: 40 to 120 psig
• Temperature (normal operating): – 4° F to 180°F
• Media:Dry or lubricated air; non-corrosive and inert gas; light hydraulic oil
• Lubrication: Factory lubricated for normal lifetime
• Rotation: 90°

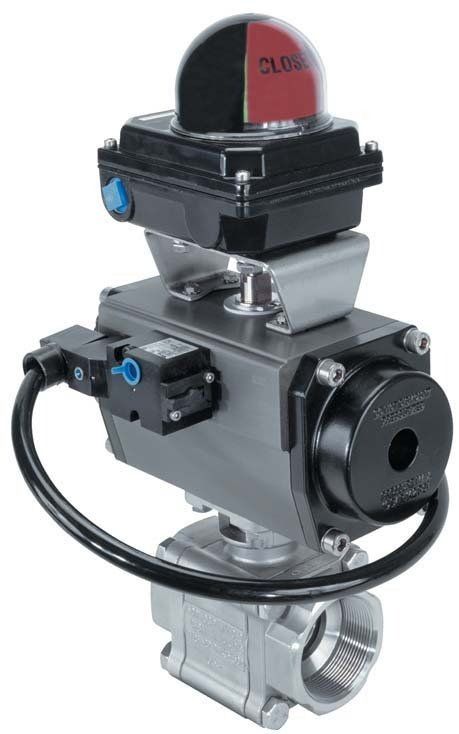

ACCESSORIES

• Limit Switch
• Positioner
• Solenoid Valve
