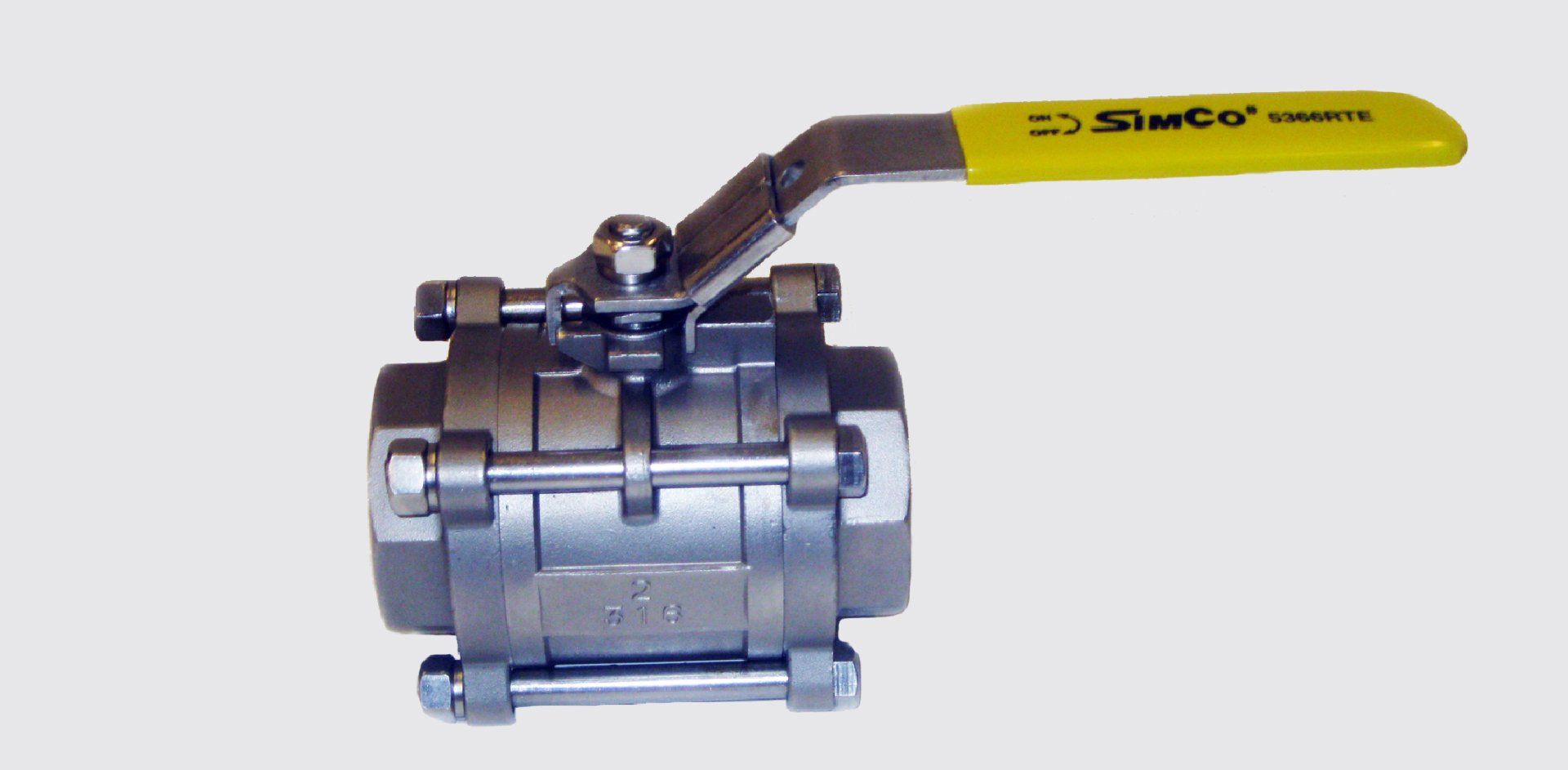

SERIES #53NM
- 3-Piece Full Port NPT
- No Mounting Pad
- 1000 W.O.G.
- 316/ WCB
- S.W/NPT ENDS
- Size 1/4" to 4"
- Temp: -20° F to 450° F
- Locking Handle Standard
Features & Benefits
3-Piece Design
Swing-out design for easy maintenance
Blow Out Proof Stem
Stem is bottom loaded to prevent removal when valve is in service
Locking Handle
Enables plant personnel to secure valve in open or closed position when manually operated
Full Port Design
Improves flow resulting in increased process efficiencies
Investment Cast
Improves dimensional control and reduces porosity.

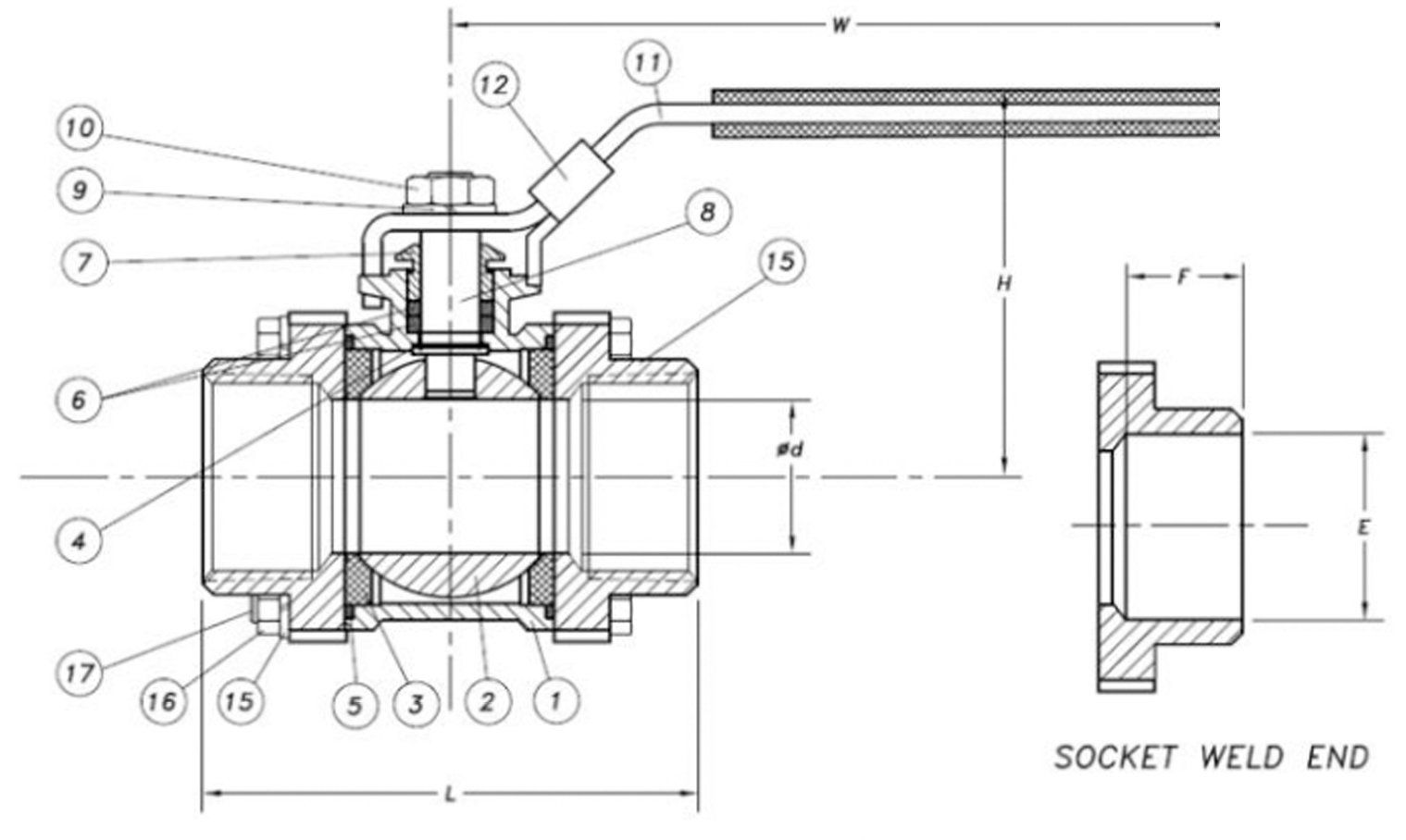

Schematic Diagram

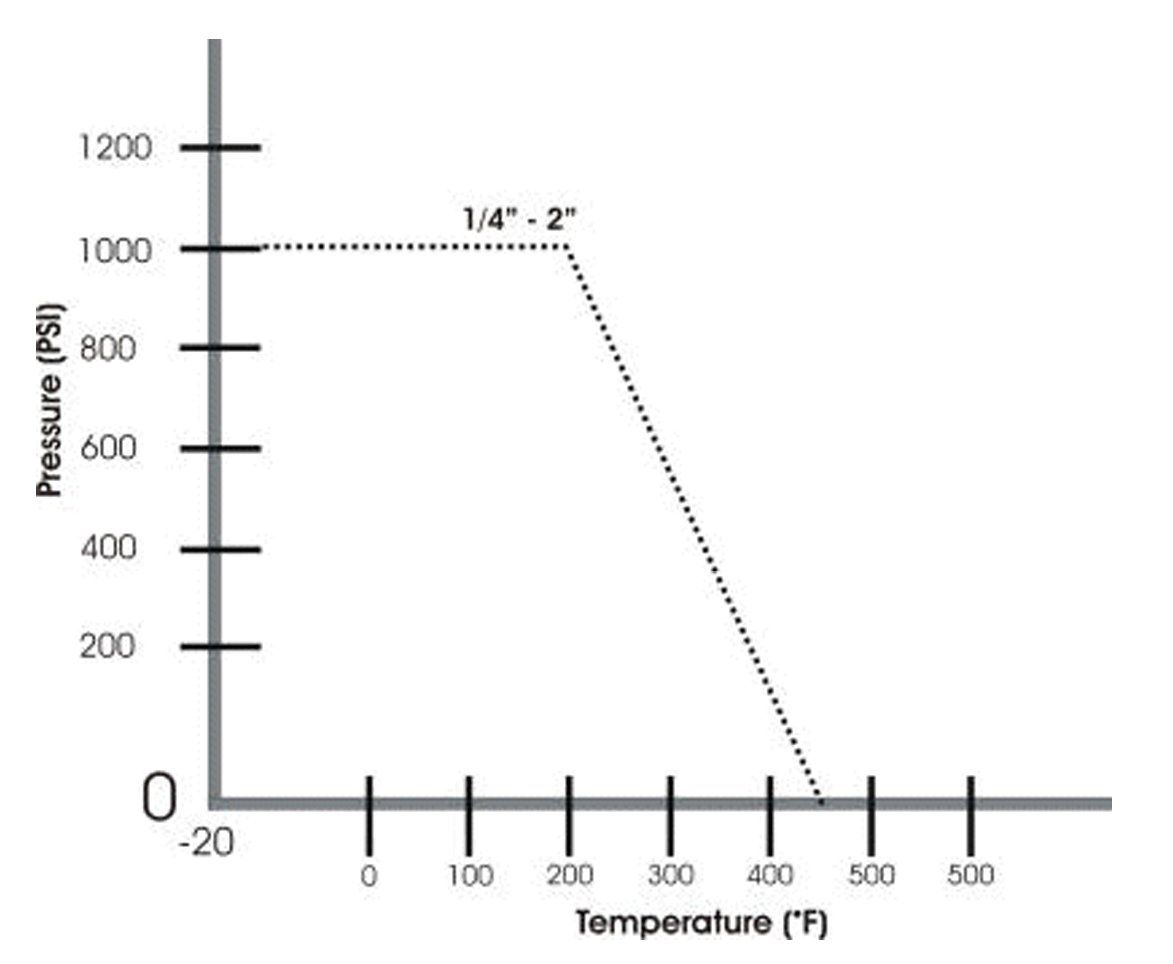

Pressure & Temperature Chart
Operating / Test Conditions
- Temperature Range (RTFE) -20°F to 450°F
- Maximum working pressure: 1000 W.O.G
- All Materials comply with applicable A S TM material specifications
- Test and Inspection API 598 | ANSI/ASME 16. 11
Options
- Available in 316 Stainless Steel Construction A S TM A351-CF8M
- Avaliable in Carbon Steel Construction A S TM A216-WCB
- End Connections available in: NPT, Socketweld

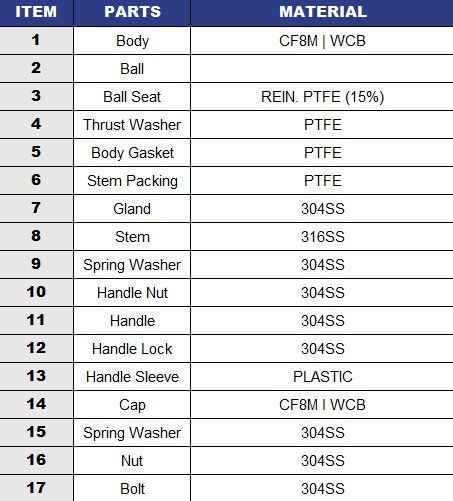

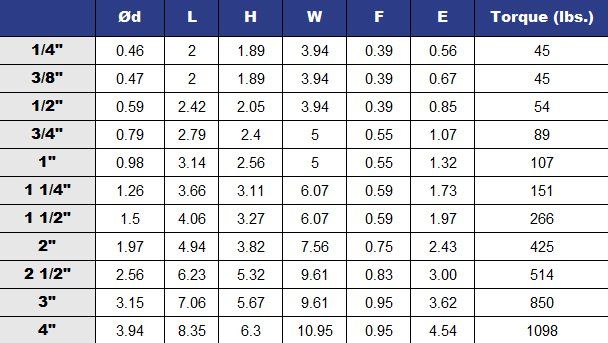

Materials & Measurements
