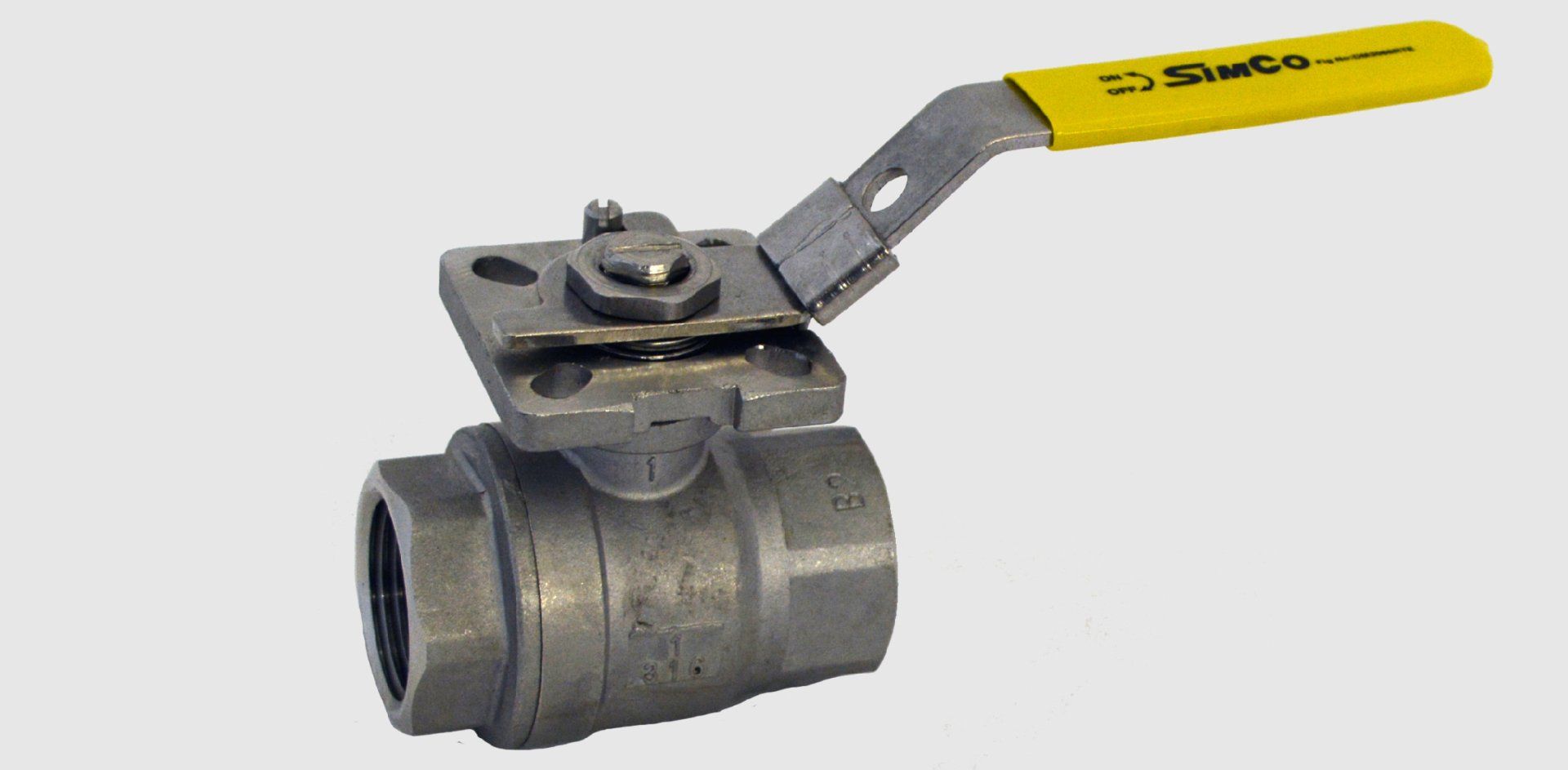

SERIES #DM30

  • ISO 5211 Direct Mount
  • 2-Piece Full Port NPT
  • 1000 W.O.G.
  • 316
  • Size 1/2" to 3"
  • Temp: -20° F to 450° F
  • Locking Handle Standard
FULL PDF CUT SHEET

Features & Benefits

Economical 2-Piece Design


Full Port

Full port construction improves flow characteristics for greater process efficiencies



ISO 5211 Direct Mounting Pad

Provides for precise shaft alignment and eliminates the need for brackets and couplings



Locking Handle

Enables plant personnel to secure valve in open or closed position when manually operated.




Adjustable Live Loaded Stem



Investment Cast

Improves dimensional control and reduces porosity.

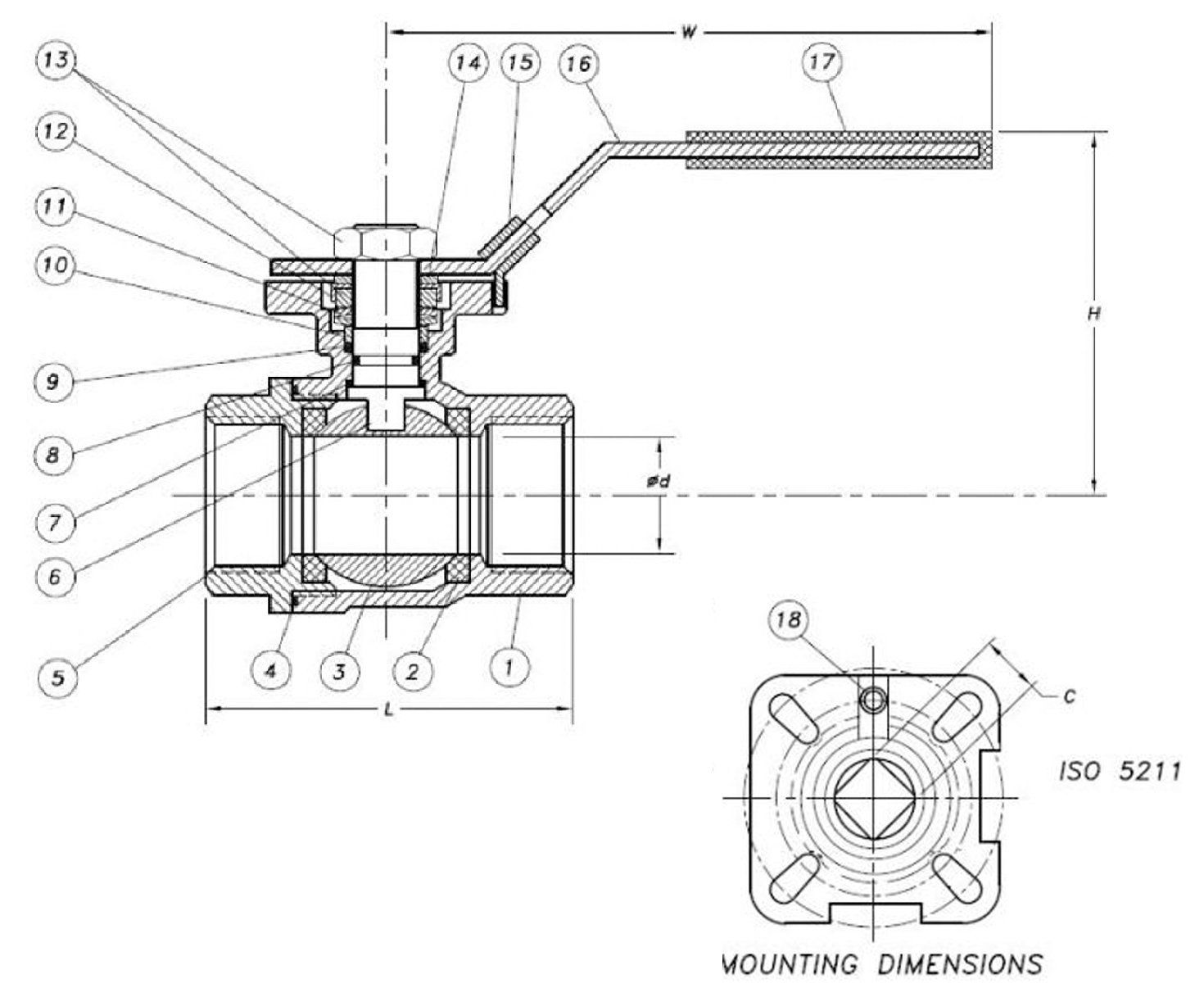

Schematic Diagram

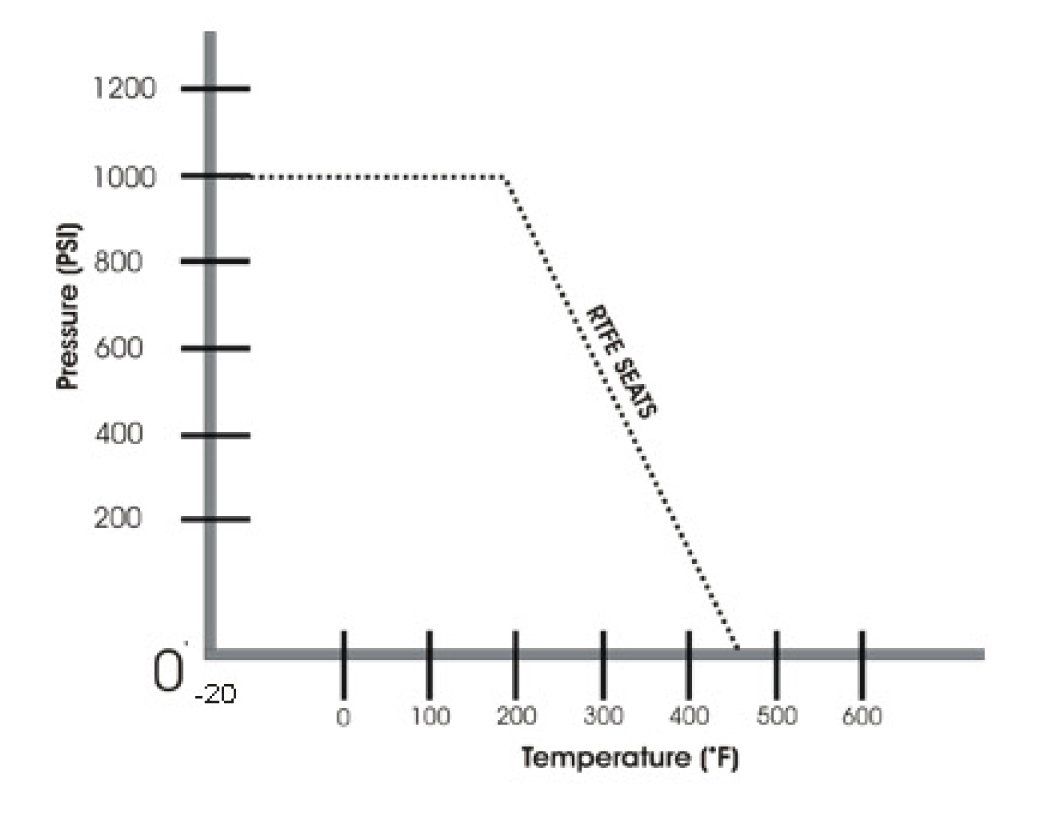

Pressure & Temperature Chart

Operating / Test Conditions

  • Temperature Range (RTFE) -20°F to 450°F


  • Maximum working pressure: 1000 W.O.G


  • NPT ENDS conform to ASME B1.20.1


  • Applicable standards: Test and Inspection API 598 | ANSI/ASME B16.11 | ISO 5211  | MSS SP25, SP72

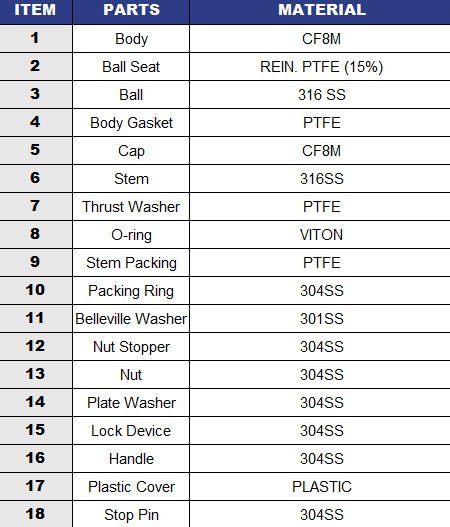

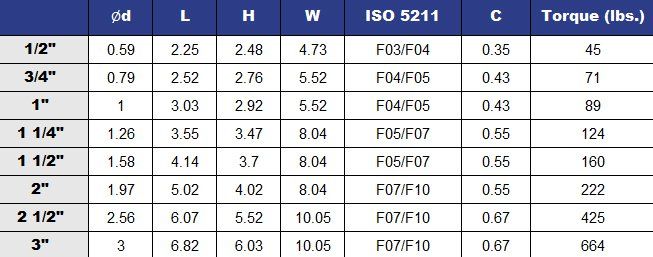

Materials & Measurements
