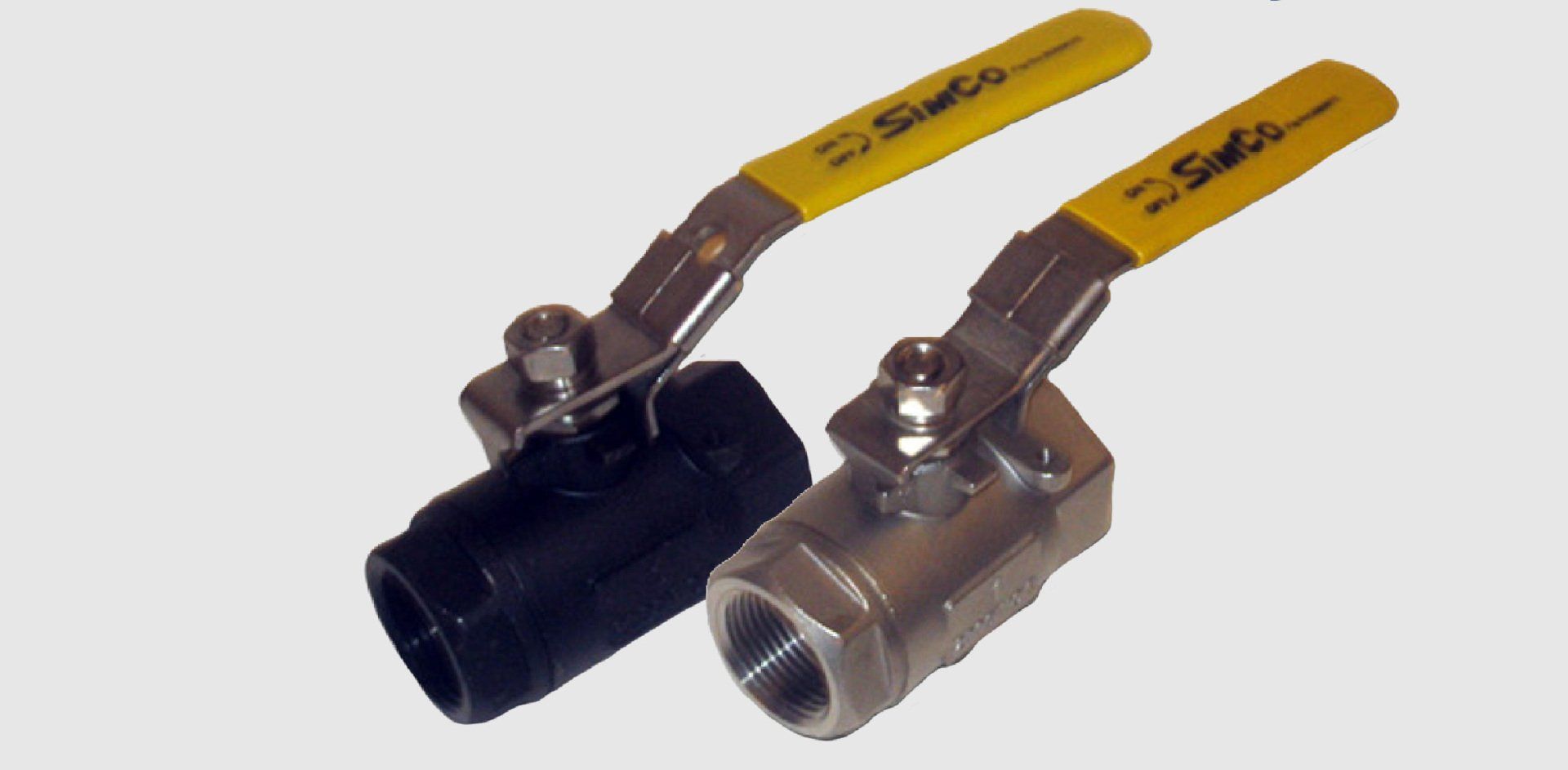

SERIES #20

  • 2-Piece Standard Port NPT
  • 2000 W.O.G.
  • 316 & Carbon Steel Body
  • Size 1/4" to 2"
  • Temp: -20° F to 450° F
  • Locking Handle Standard
FULL PDF CUT SHEET

Features & Benefits

Economical 2-Piece Design


Standard Port



Blow-out Proof Stem

Stem is bottom loaded to prevent removal when valve is in service.



Locking Handle

Enables plant personnel to secure valve in open or closed position when manually operated.



Mounting Pad


Corrosion Resistant

Made of 316 Stainless Steel (A351 GR.CF8M) for superior chemical resistance and longer service life. Carbon steel and 316 body valves come standard with stainless steel ball, stem  and latch lock handle.



Investment Cast

Improves dimensional control and reduces porosity.

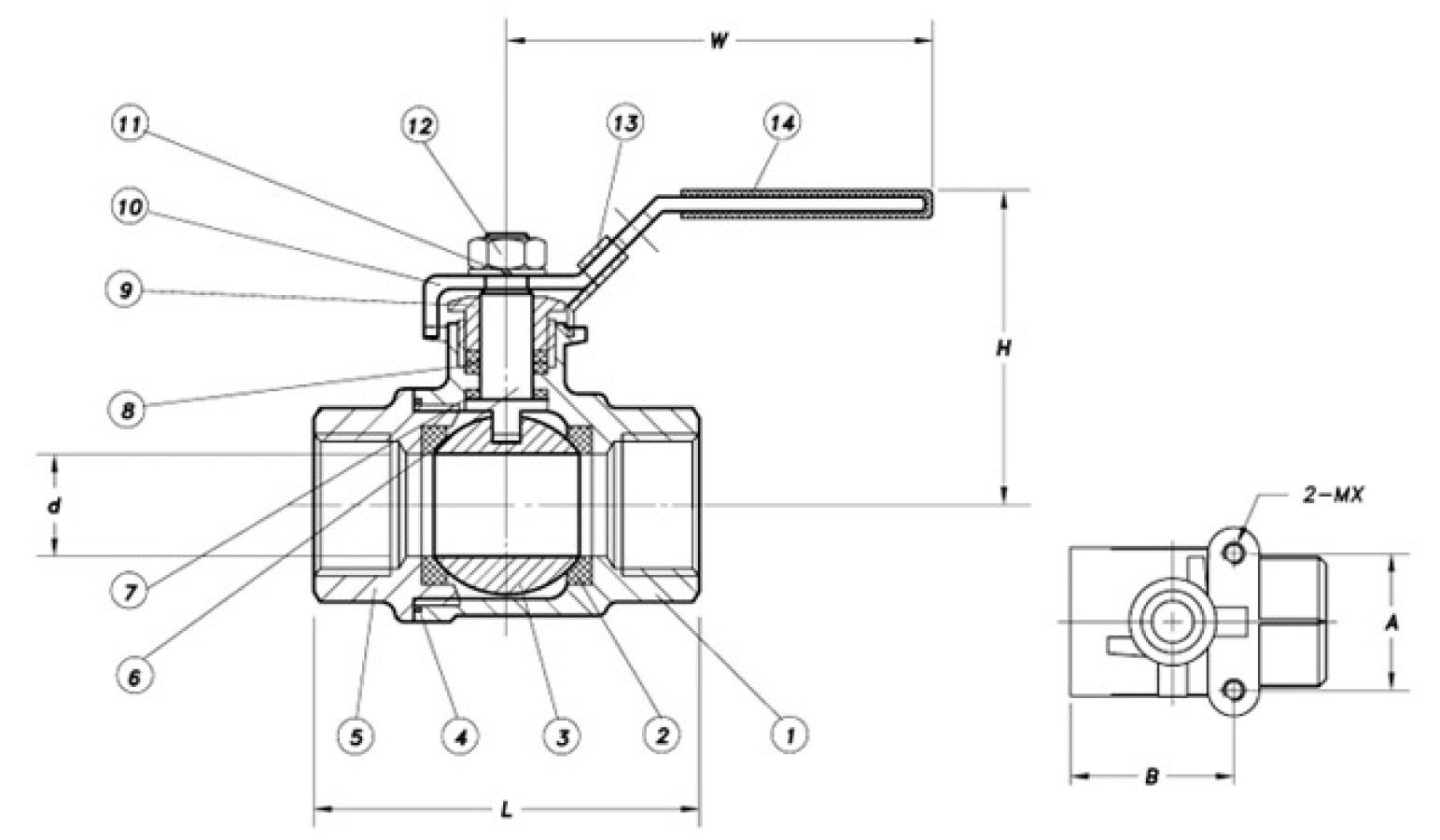

Schematic Diagram

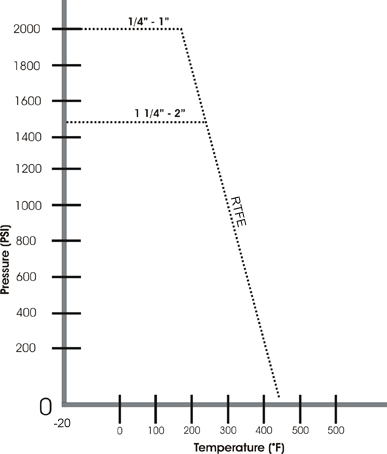

Pressure & Temperature Chart

Operating / Test Conditions

  • Temperature Range (RTFE) -20°F to 450°F


  • Maximum working pressure: 2000 W.O.G (1/4"-1") 1500 W.O.G (1 1/4"-2")


  • Threaded ENDS conform to ASME B1.20.1


  • Applicable standards: Wall thickness ASME B16.598 / Test and Inspection API 598

Options

  • Oval Handles



  • Carbon Steel Construction

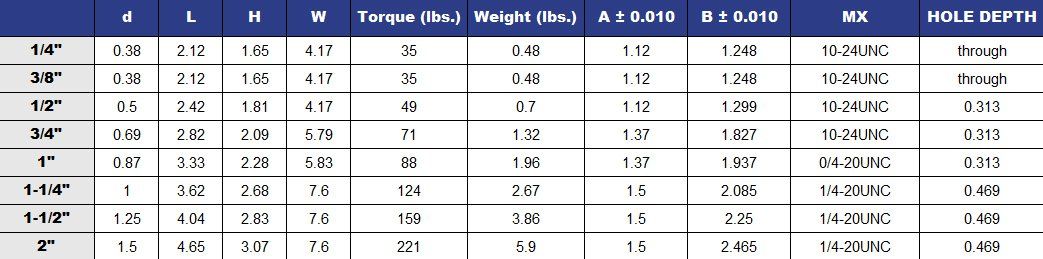

Materials & Measurements

Investment Casting Ball Valve, Standard Bore,

Screw End, 2000/1500 WOG

  • Investment Casting for Body and Cap



  • Threaded Ends: ANSI B2, BS 21, DIN 259/299



  • Internal Entry Blow-Out Proof Stem



  • Pressure Rating: 1/4" - 1" 2000psi 1 1/4" - 2" 1500psi

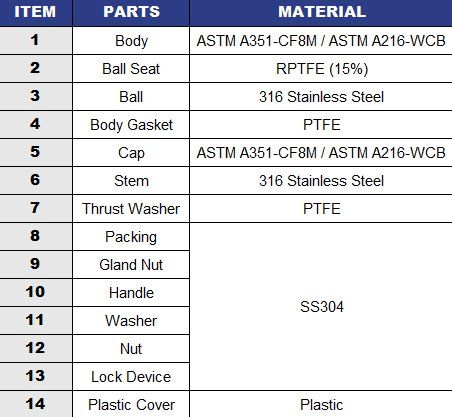

  • Material: See Table (Right)



  • Pressure Test: API 598
