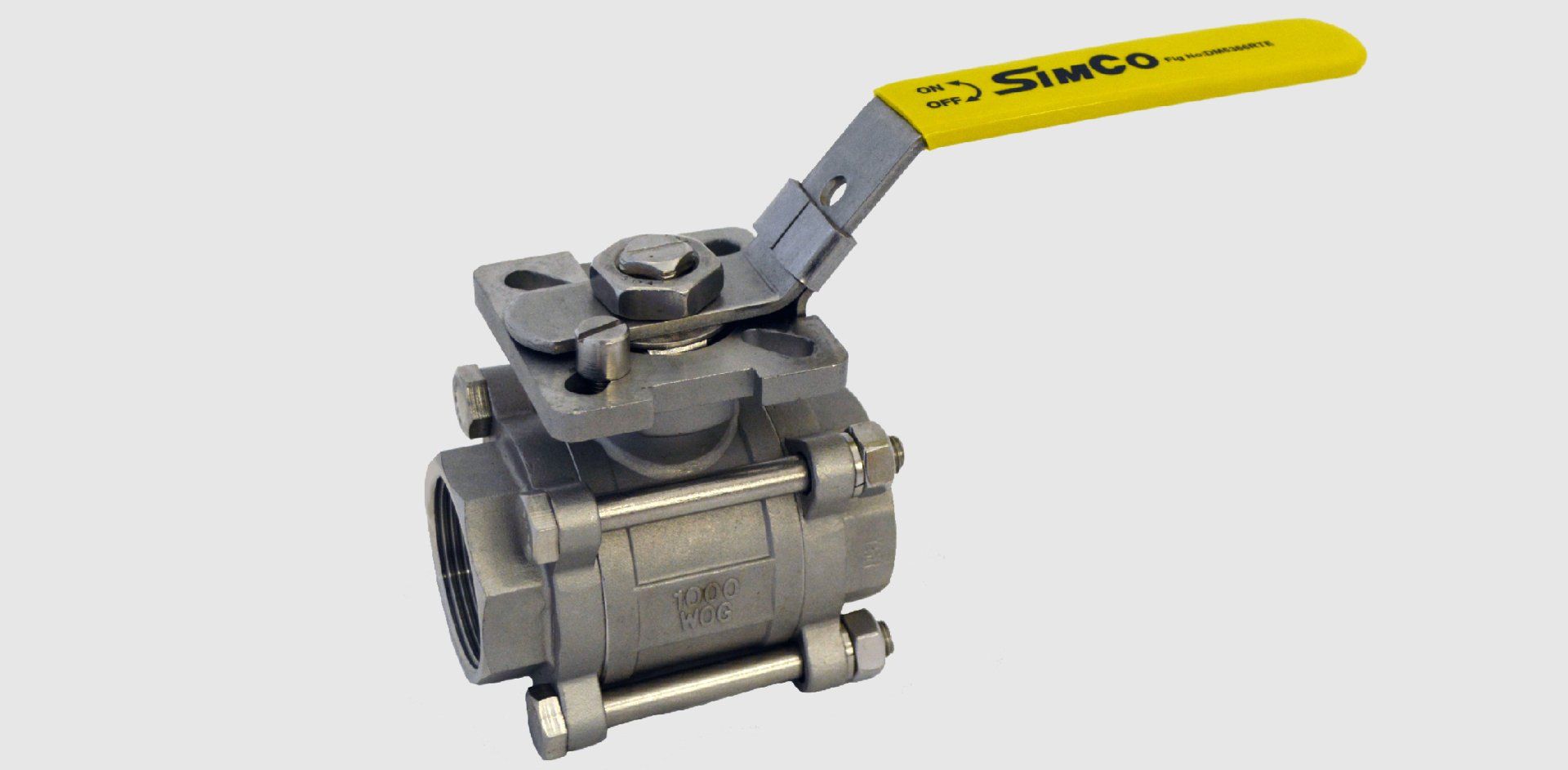

SERIES #DM53
- ISO 5211 Direct Mount
- 3-Piece Full Port NPT
- 1000 W.O.G.
- 316/ WCB
- S.E/NPT ENDS
- Size 1/4" to 4"
- Temp: -20° F to 450° F
- Locking Handle Standard
Features & Benefits
3-Piece Design
Easy to repair. Swing-out center section allows easy access to internal value components without disturbing alignment of pipe
Full Port
Improves flow characteristics for greater process efficiencies
ISO 5211 Direct Mounting Pad
Provides for precise shaft alignment and eliminates the need for brackets and couplings
Locking Handle
Adjustable Live Loaded Stem
Blow-out Proof Stem
Investment Cast
Improves dimensional control and reduces porosity.

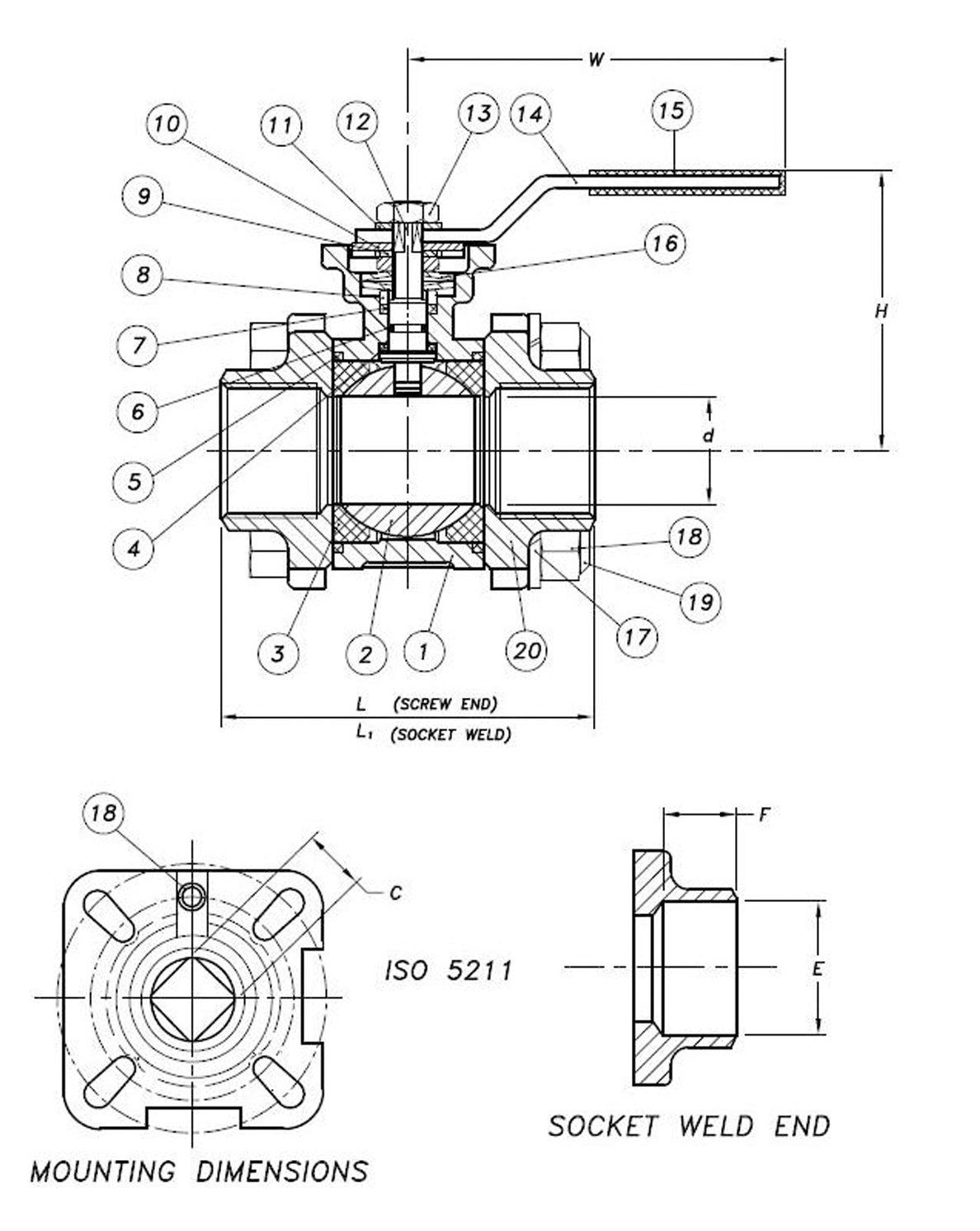

Schematic Diagram

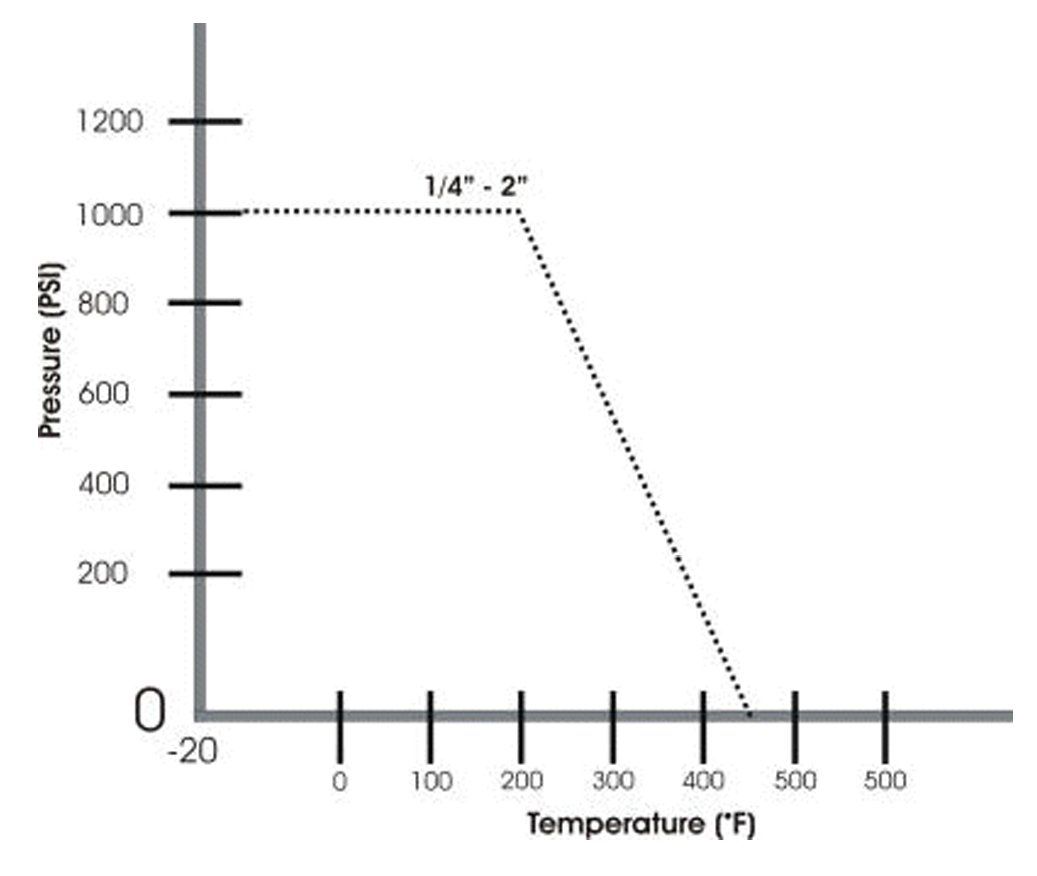

Pressure & Temperature Chart
Operating / Test Conditions
- Temperature Range (RTFE) -20°F to 450°F
- Maximum working pressure: 1000 W.O.G
- Applicable standards:
Test and Inspection API 598
| ANSI/ASME B16.11
| ISO 5211
| MSS SP25, SP72
Options
- Available in 316 Stainless Steel Construction A S TM A351-CF8M
- Avaliable in Carbon Steel Construction A S TM A216-WCB
- End Connections available in: NPT, Socketweld

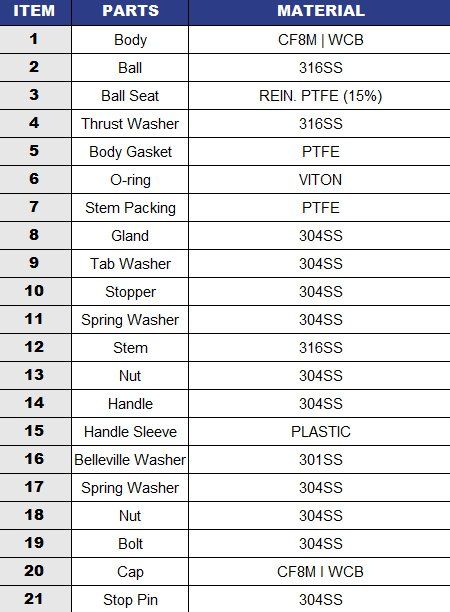

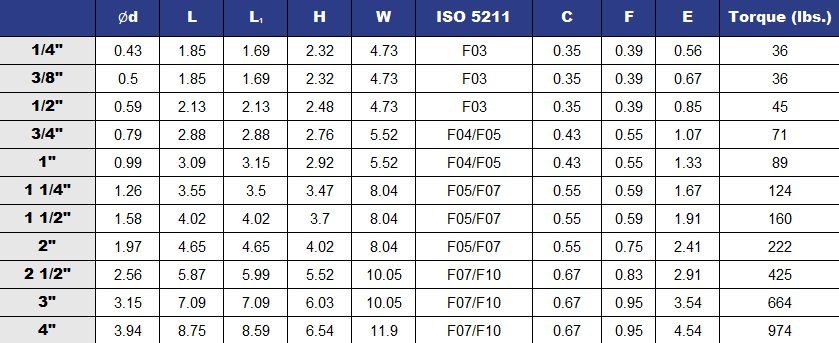

Materials & Measurements
