SERIES #46116
- Flanged Gate Valve
- ANSI 150
- 316
- Size 1 1/2" to 14"
Features & Benefits
Outside Screw and Yoke
Bolted Bonnet
Rising Stem and Non-Rising Handwheel
Flanged Ends Conform to ASME B16.5
Face to Face: ANSI B16.10
Wall Thickness: ANSI B16.34
Test and Inspection to API 598
Graphoil Packing for Long Valve Life and High Temperature Applications

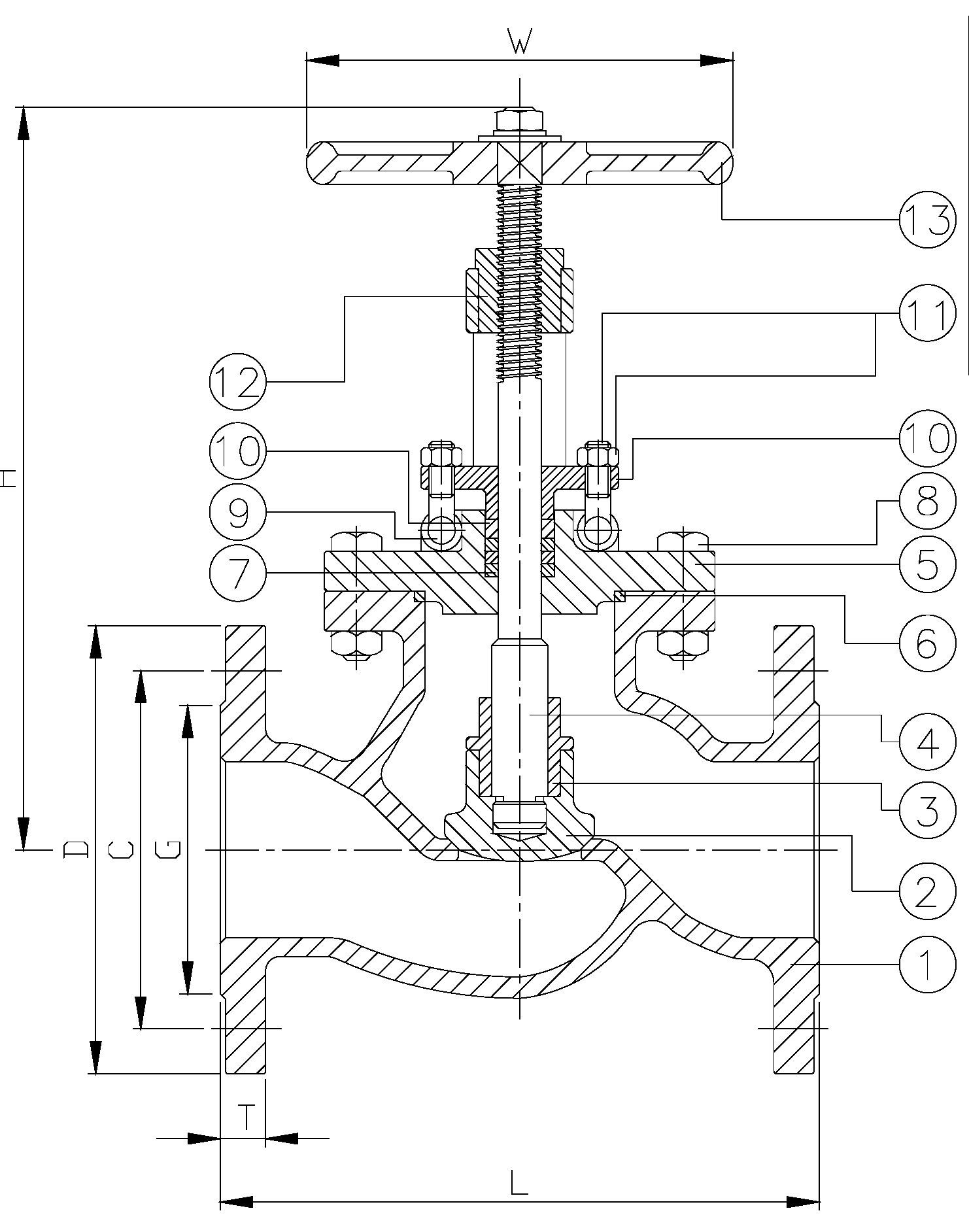

Schematic Diagram

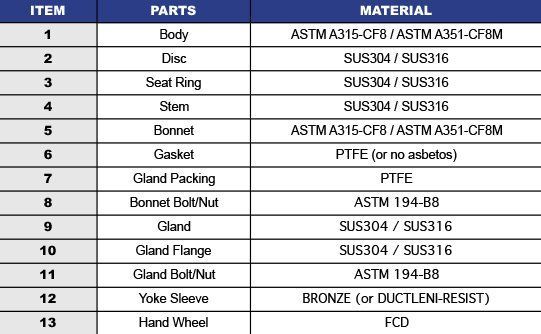

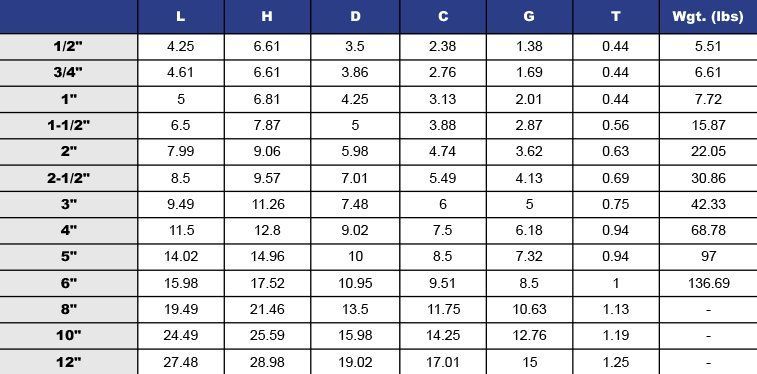

Materials & Measurements
