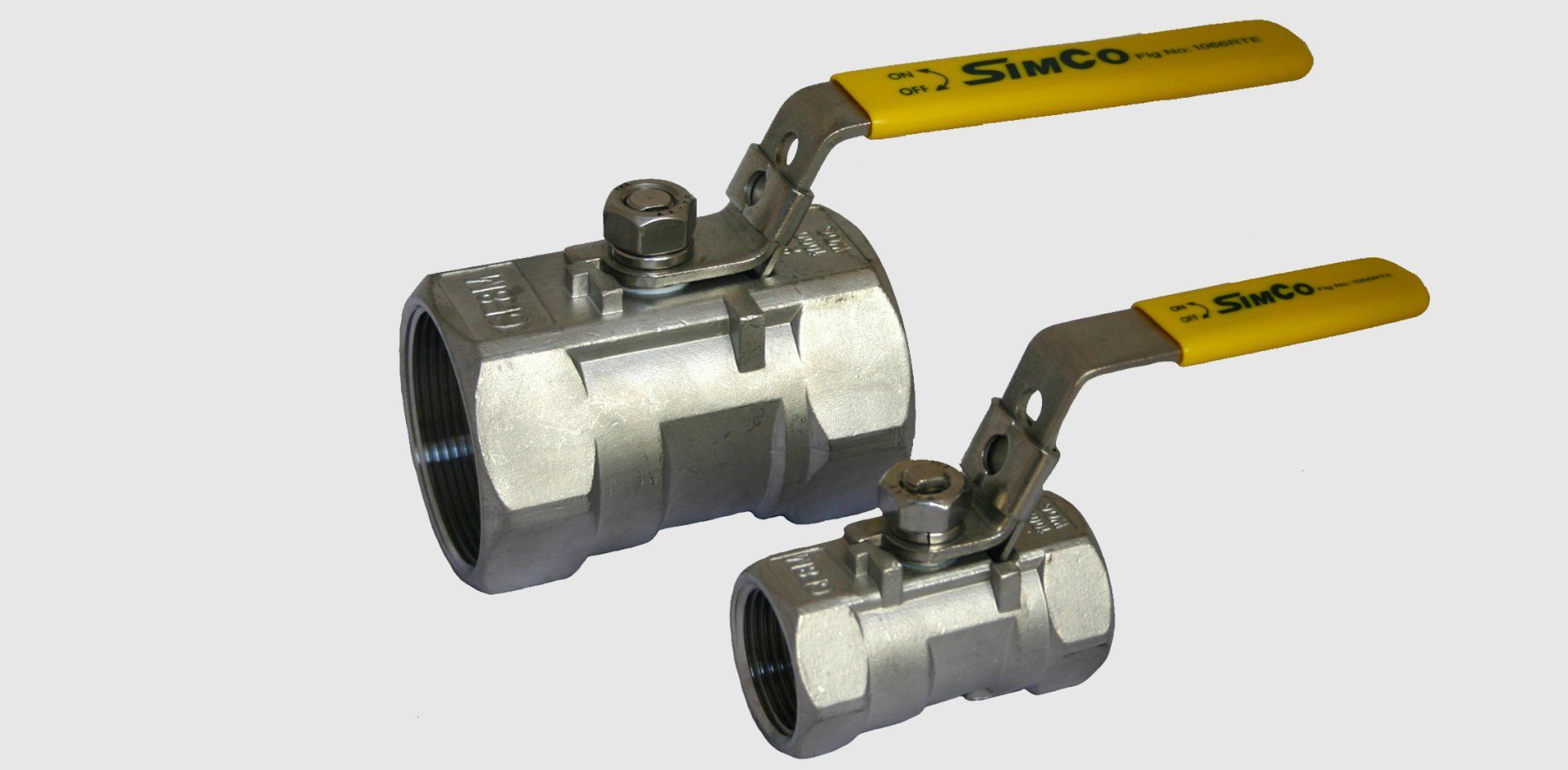

SERIES #10

  • 1 Piece Reduced Port
  • 1000 W.O.G
  • 316
  • Size 1/4" to 2"
  • Temp -20° to 450° F
  • Locking Handle Standard
FULL PDF CUT SHEET

Features & Benefits

Economical 1-Piece Design


Blow-out Proof Stem

Stem is bottom loaded to prevent removal when valve is in service.


Locking Handle

 Enables plant personnel to secure valve in open or closed position when manually operated.


Corrosion Resistant

Made of 316 Stainless Steel (A351 GR.CF8M) for superior chemical resistance and longer service life.



Investment Cast

Improves dimensional control and reduces porosity.

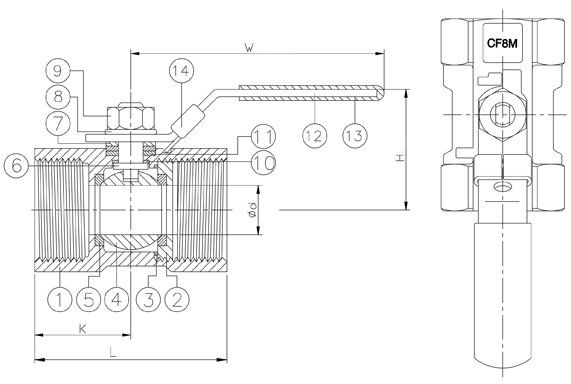

Schematic Diagram

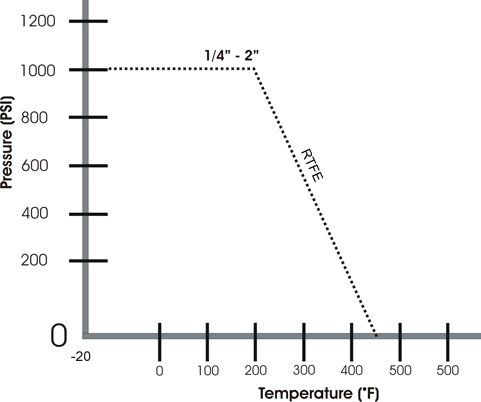

Pressure & Temperature Chart

Operating / Test Conditions

  • Temperature Range (RTFE) -20°F to 450°F


  • Maximum working pressure: 1000 W.O.G


  • Threaded ENDS conform to ASME B1.20.1


  • Applicable standards: Test and Inspection API 598

Options

  • Oval Handles



  • Carbon Steel Construction

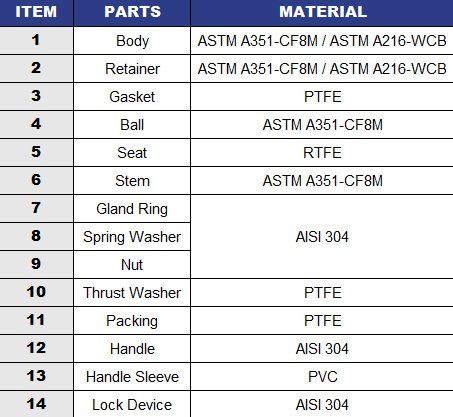

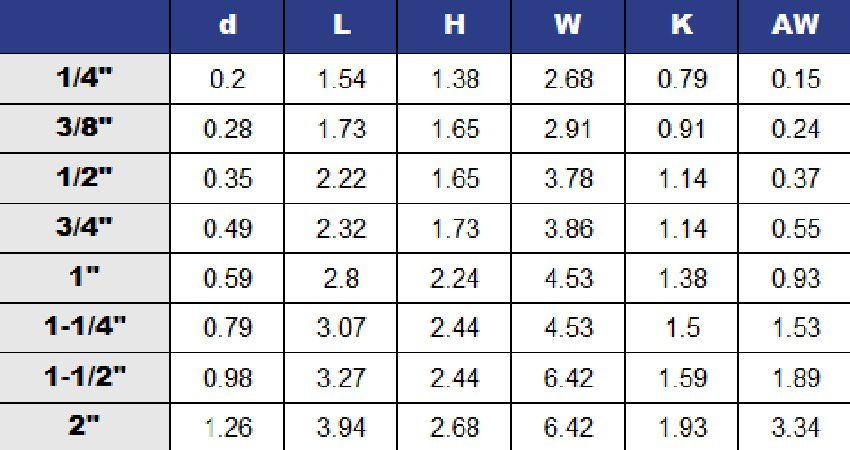

Materials & Measurements
