SERIES #50

  • 2-Piece Full Port
  • ANSI 150 Flanged End
  • 316 / WCB
  • Size 1/2" to 6"
  • Temp: -20° F to 450° F

Features & Benefits

  • Full Port Design

        Improves flow characteristics for greater process efficiencies.



  • Blow-out Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service.



  • Locking Handle

        Enables plant personnel to secure valve in open or closed               position when manually operated



  • Corrosion Resistant
    Made of 316 Stainless Steel (A351 GR.CF8M)



  • Investment Cast

        Improves dimensional control and reduces porosity.



  • ISO 5211 Mounting Pad



  • Face to Face Dimensions: ANSI B16.10



  • End Flange Dimensions: ANSI B16.5



  • Design: ANSI 16.34



  • Test: API 598



  • Lever Operated or Gear Operated

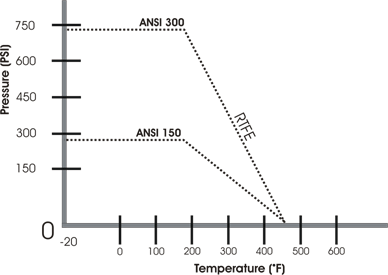

Pressure & Temperature Chart

  • Temperature Range (RTFE) -20°F to 450°F



  • Maximum working pressure:

        ANSI 150: 275 PSI WOG @100 F

        ANSI 300: 720 PSI WOG @100 F



  • All valves are shell and seat tested to ANSI/ASME B16-34 and APE 598



  • Face to Face ANSI B16-10



Operating/Test Conditions

Schematic Diagram

Options





  • Carbon Steel ASTM A216-WCB



  • 316 A351 CF8M



  • Pneumatic Automation



  • Stem Extensions



  • Oxygen Cleaning



Materials & Measurements

  • Full Port Design

        Improves flow characteristics for greater process efficiencies.



  • Blow-out Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service.



  • Locking Handle

        Enables plant personnel to secure valve in open or closed position when manually operated



  • Corrosion Resistant
    Made of 316 Stainless Steel (A351 GR.CF8M)



  • Investment Cast

        Improves dimensional control and reduces porosity.



  • ISO 5211 Mounting Pad



  • Face to Face Dimensions: ANSI B16.10



  • End Flange Dimensions: ANSI B16.5



  • Design: ANSI 16.34



  • Test: API 598



  • Lever Operated or Gear Operated
