SERIES #69

  • 3-Piece Tube Port
  • 1000 W.O.G.
  • 316
  • Clamp End
  • 240 Grit Standard
  • Size 1/2" to 4"

Features & Benefits

  • Tube Full Port Design

        True tube full port construction improves flow characteristics
        and helps eliminate build up of process media.



  • 3-Piece Design
    Swing out construction makes the valve easy to repair in line.



  • Blow-Out Proof Stem

        Stem is bottom loaded to prevent removal when valve is in

        service.



  • Locking Handle
    Enables plant personnel to secure valve in open or closed position when manually operated.



  • Investment Cast



  • ISO 5211 Mounting Pad



  • 240 Grit Standard: Internal Polish

        High polish standard finish to meet a wide range of
        applications.



  • TFM Standard Seating Material

        Allows valve to cover a wide range of media/temperature
        applications.

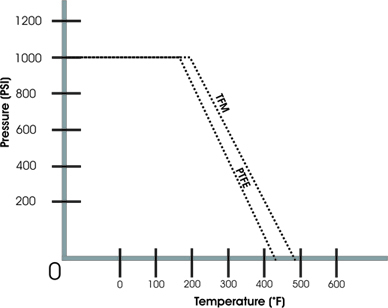

Pressure & Temperature Chart

  • Temperature Range (RTFE) -20°F to 500°F



  • Maximum working pressure: 1000 W.O.G.





  • Valves inspected and tested to API598



  • All materials comply with applicable ASTM material specifications



  • USDA, and FDA material requirements



Operating/Test Conditions

Schematic Diagram

Options





  • Clamp end, tube butt weld, extended butt weld ends



  • Polish and electric polish to custom specifications



  • Cavity filled seats

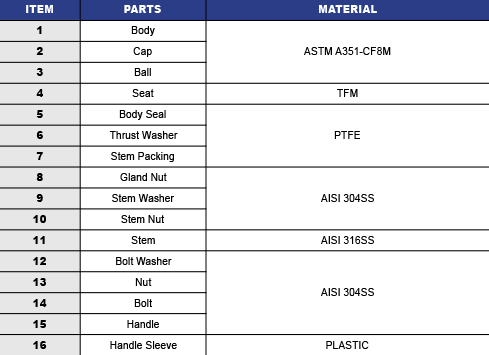

Materials & Measurements

  • Tube Full Port Design

        True tube full port construction improves flow characteristics and helps eliminate build up of process media.



  • 3-Piece Design
    Swing out construction makes the valve easy to repair in line.



  • Blow-Out Proof Stem

        Stem is bottom loaded to prevent removal when valve is in service.



  • Locking Handle
    Enables plant personnel to secure valve in open or closed position when manually operated.



  • Investment Cast



  • ISO 5211 Mounting Pad



  • 240 Grit Standard: Internal Polish

        High polish standard finish to meet a wide range of applications.



  • TFM Standard Seating Material

        Allows valve to cover a wide range of media/temperature applications.
