SERIES #10

  • 1 Piece Reduced Port NPT
  • 1000 W.O.G.
  • 316
  • Size 1/4" to 2"
  • Temp: -20° F to 450° F
  • Locking Handle Standard

Features & Benefits

  • Economical 1-Piece Design



  • Blow-out Proof Stem

        Stem is bottom loaded to prevent removal when valve is in               service.



  • Locking Handle

        Enables plant personnel to secure valve in open or closed                 position when manually operated.



  • Corrosion Resistant

        Made of 316 Stainless Steel (A351 GR.CF8M) for superior               chemical resistance and longer service life.



  • Investment Cast

        Improves dimensional control and reduces porosity.

Pressure & Temperature Chart

  • Temperature Range (RTFE) -20°F to 450°F



  • Maximum working pressure: 1000 W.O.G



  • Threaded ENDS conform to ASME B1.20.1



  • Applicable standards: Test and Inspection API 598
  • Oval Handles



  • Carbon Steel Construction



Options

Operating/Test Conditions

Schematic Diagram

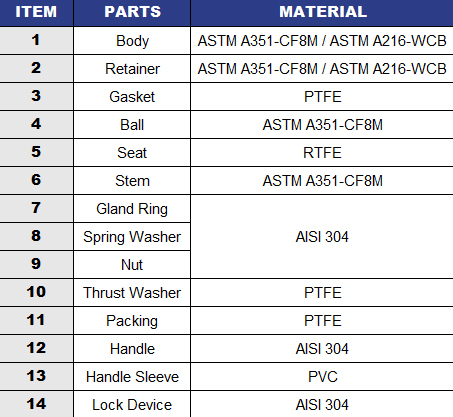

Materials & Measurements

Vales Shrewbury Ma
  • Economical 1-Piece Design



  • Blow-out Proof Stem

        Stem is bottom loaded to prevent removal when valve is in service.



  • Locking Handle

        Enables plant personnel to secure valve in open or closedposition when manually operated.



  • Corrosion Resistant

        Made of 316 Stainless Steel (A351 GR.CF8M) for superior chemical resistance and longer service life.



  • Investment Cast

        Improves dimensional control and reduces porosity.
