SERIES #DM53

Valves
  • ISO 5211 Direct Mount
  • 3-Piece Full Port
  • 1000 W.O.G.
  • 316/WCB
  • S.W/NPT ENDS
  • Size 1/4" to 4"
  • Temp: -20° F to 450° F
  • Locking Handle Standard

Features & Benefits

  • Full Port Design

        Improves flow resulting in increased process efficiencies.



  • 3-Piece Design

        Easy to repair. Swing-out center section allows easy access           to internal valve components without disturbing alignment of           pipe



  • ISO 5211 Direct Mounting Pad

        Provides for precise shaft alignment and eliminates the need           for brackets and couplings.



  • Adjustable Live Loaded Stem



  • Blow-out Proof Stem



  • Investment Cast

        Improves dimensional control and reduces porosity.



  • Locking Handle


Pressure & Temperature Chart

  • Temperature Range (RTFE) -20°F to 450°F



  • Maximum working pressure:

       1000 W.O.G



  • Applicable standards:

       Test and Inspection API 598

        ANSI/ASME B16. 11

        ISO 5211

        MSS SP25, SP72

Operating/Test Conditions

Schematic Diagram

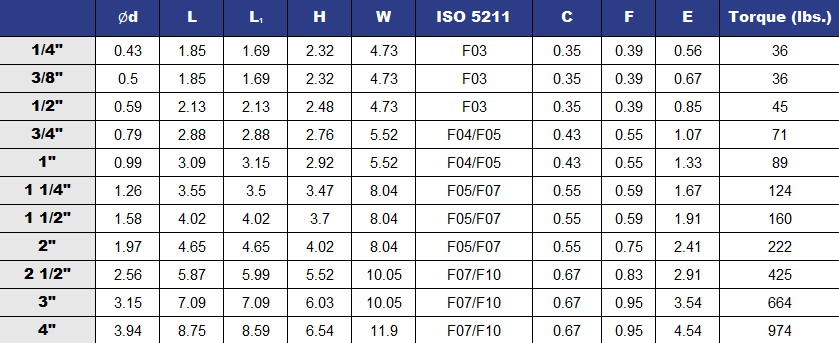

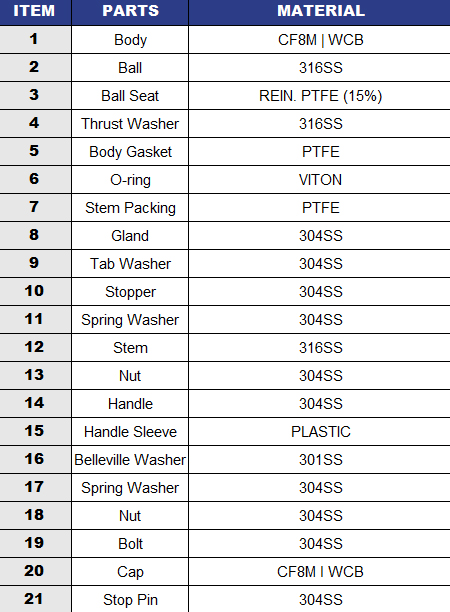

Materials & Measurements

Valves
Valves

Options





  • Available in 316 Stainless Steel Construction ASTM A351-CF8M



  • Available in Carbon Steel Construction ASTM A216-WCB



  • End Connections available in: NPT, Socketweld

Valves
  • Full Port Design

        Improves flow resulting in increased process efficiencies.



  • 3-Piece Design

        Easy to repair. Swing-out center section allows easy access to internal valve components without disturbing alignment of           pipe



  • ISO 5211 Direct Mounting Pad

        Provides for precise shaft alignment and eliminates the need for brackets and couplings.



  • Adjustable Live Loaded Stem



  • Blow-out Proof Stem



  • Investment Cast

        Improves dimensional control and reduces porosity.



  • Locking Handle

Valves
