SERIES #20

  • 2-Piece Standard Port NPT
  • 2000 W.O.G.
  • 316 & Carbon Steel Body
  • Size 1/4" to 2"
  • Temp: -20° F to 450° F
  • Locking Handle Standard

Features & Benefits

  • Economical 2-Piece Design



  • Standard Port



  • Blow-out Proof Stem

        Stem is bottom loaded to prevent removal when valve is in             service.



  • Locking Handle

        Enables plant personnel to secure valve in open or closed               position when manually operated.



  • Mounting Pad



  • Corrosion Resistant

        Made of 316 Stainless Steel (A351 GR.CF8M) for superior             chemical resistance and longer service life. Carbon steel and         316 body valves come standard with stainless steel ball, stem         and latch lock handle.



  • Investment Cast

        Improves dimensional control and reduces porosity.

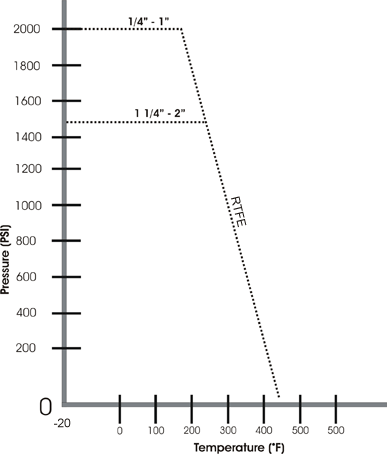

Pressure & Temperature Chart

  • Temperature Range (RTFE) -20°F to 450°F



  • Maximum working pressure:

       2000 W.O.G (1/4"-1")

       1500 W.O.G (1 1/4"-2")



  • Threaded ENDS conform to ASME B1.20.1



  • Applicable standards:

       Wall thickness ASME B16.34

       Test and Inspection API 598

  • Oval Handles



  • Carbon Steel Construction



Options

Operating/Test Conditions

Schematic Diagram

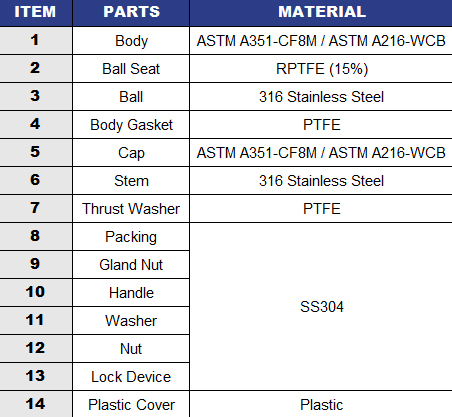

Materials & Measurements

  • Investment Casting for Body and Cap



  • Threaded Ends: ANSI B2, BS 21, DIN 259/299



  • Internal Entry Blow-Out Proof Stem



  • Pressure Rating: 1/4" - 1" 2000psi 1 1/4" - 2" 1500psi



  • Material: See Table (Right)



  • Pressure Test: API 598

Investment Casting Ball Valve, Standard Bore,

Screw End, 2000/1500 WOG
