SERIES #53

• 3-Piece Full Port
• 1000 W.O.G.
• 316 / WCB
• S.W. / NPT / B.W.
• Size 1/4" to 4"
• Temp: -20° F to 450° F
• Locking Handle Standard

Features & Benefits

• Full Port Design

        Improves flow resulting in increased process efficiencies.

• 3-Piece Design

        Easy to repair. In-line serviceable, swing out center section             allows easy access to internal valve components without                 disturbing alignment of pipe.

• Blow-out Proof Stem
  Stem is bottom loaded to prevent removal when valve is in service.

• Locking Handle

        Enables plant personnel to secure valve in open or closed               position when manually operated.

• ISO 5211 Mounting Pad

• Investment Cast

        Improves dimensional control and reduces porosity.


Pressure & Temperature Chart

• Temperature Range (RTFE) -20°F to 450°F

• Maximum working pressure:

       1000 W.O.G

• All materials comply with applicable ASTM material specifications

• Test and inspection to API 598

• End connections: all to B16.34: NPT to B1.20.1:

• Socket Weld to B16.11: Butt Weld to: B16.25

Operating/Test Conditions

Schematic Diagram

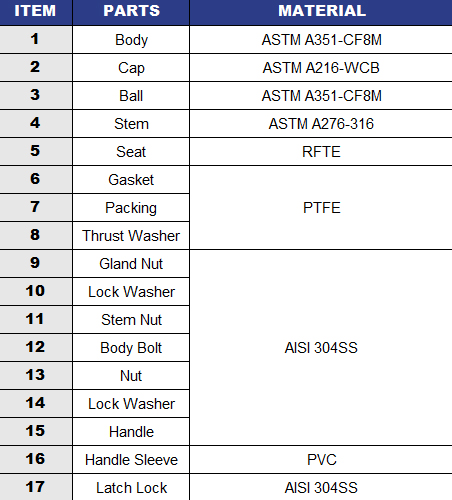

Materials & Measurements

Options

• Available in 316 Stainless Steel Construction ASTM A351-CF8M

• Available in Carbon Steel Construction ASTM A216-WCB

• End Connections available in: NPT, Socketweld, SCH 5/10/40 Butt Weld


Full PDF Cut Sheet

• Full Port Design

        Improves flow resulting in increased process efficiencies.

• 3-Piece Design

        Easy to repair. In-line serviceable, swing out center section allows easy access to internal valve components without                 disturbing alignment of pipe.

• Blow-out Proof Stem
  Stem is bottom loaded to prevent removal when valve is in service.

• Locking Handle

        Enables plant personnel to secure valve in open or closed position when manually operated.

• ISO 5211 Mounting Pad

• Investment Cast

        Improves dimensional control and reduces porosity.
