SERIES #30

  • 2-Piece Full Port NPT
  • 1000 W.O.G.
  • 316
  • Size 1/4" to 3"
  • Temp: -20° F to 450° F
  • Locking Handle Standard

Features & Benefits

  • Economical 2-Piece Design



  • Full Port

        Full port construction improves flow characteristics for greater         process efficiencies



  • Blow-out Proof Stem

        Stem is bottom loaded to prevent removal when valve is in             service.



  • Locking Handle

        Enables plant personnel to secure valve in open or closed               position when manually operated.



  • Corrosion Resistant

        Made of 316 Stainless Steel (A351 GR.CF8M) for superior             chemical resistance and longer service life.



  • Investment Cast

        Improves dimensional control and reduces porosity.

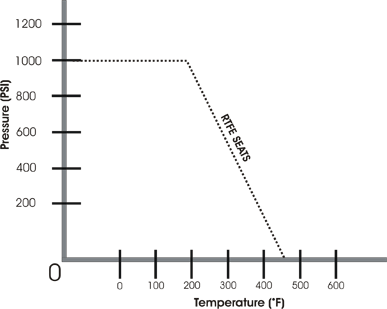

Pressure & Temperature Chart

  • Temperature Range (RTFE) -20°F to 450°F



  • Maximum working pressure:

       1000 W.O.G



  • NPT ENDS conform to ASME B1.20.1



  • Applicable standards:

       Test and Inspection API 598

  • Oval Handles



Options

Operating/Test Conditions

Schematic Diagram

Materials & Measurements

  • Investment Casting for Body and Cap



  • Threaded Ends: ANSI B2, BS 21, DIN 259/2999



  • Internal Entry Blow-Out Proof Stem



  • Pressure Rating: 1000psi (PN63)

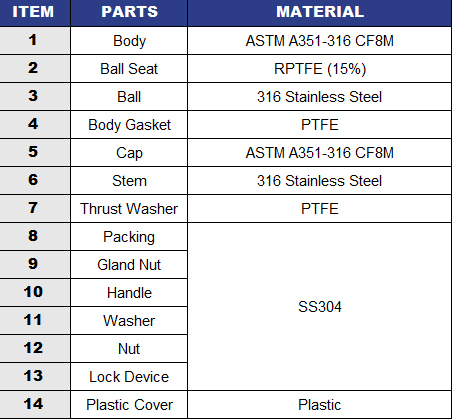

  • Material: See Table (Right)



  • Pressure Test: API 598

Investment Casting Ball Valve, Full Bore,

Screw End, 1000 WOG

Valves
Valves
Valves
  • Economical 2-Piece Design



  • Full Port

        Full port construction improves flow characteristics for greater process efficiencies



  • Blow-out Proof Stem

        Stem is bottom loaded to prevent removal when valve is in service.



  • Locking Handle

        Enables plant personnel to secure valve in open or closed position when manually operated.



  • Corrosion Resistant

        Made of 316 Stainless Steel (A351 GR.CF8M) for superior chemical resistance and longer service life.



  • Investment Cast

        Improves dimensional control and reduces porosity.
