SERIES #36116

  • Flanged Gate Valve
  • ANSI 150
  • 316
  • Size 1 1/2" to 14"

Features & Benefits

  • Outside Screw and Yoke



  • Bolted Bonnet



  • Flexible Wedge Fully Guided



  • Integral Seats



  • Rising Stem and Non-Rising Handwheel



  • Flanged Ends Conform to ASME B16.5

        Face to Face: ANSI B16.10

        Wall Thickness: ANSI B16.34



  • Test and Inspection to API 598



  • Graphoil Packing for Long Valve Life and High Temperature Applications



Schematic Diagram

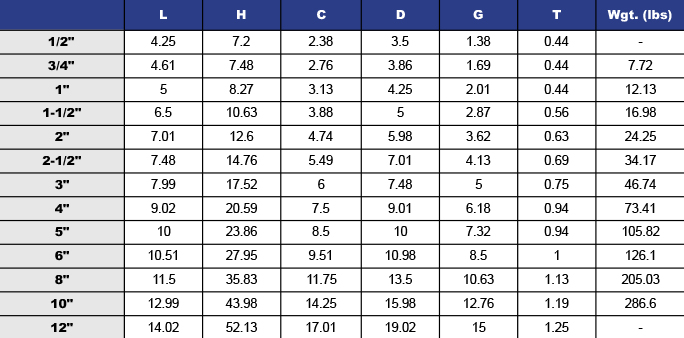

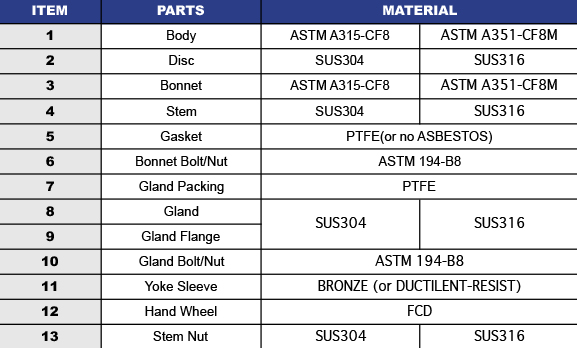

Materials & Measurements
