SERIES #53-NM

  • 3-Piece Full Port
  • No Mounting Pad
  • 1000 W.O.G.
  • 316/WCB
  • S.W./NPT ENDS
  • Size 1/4" to 4"
  • Temp: -20° F to 450° F
  • Locking Handle Standard

Features & Benefits

  • Full Port Design

        Improves flow resulting in increased process efficiencies.



  • 3-Piece Design

        Swing-out design for easy maintenance.



  • Blow-out Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service.



  • Locking Handle

        Enables plant personnel to secure valve in open or closed               position when manually operated.



  • Investment Cast

        Improves dimensional control and reduces porosity.


Pressure & Temperature Chart

  • Temperature Range (RTFE) -20°F to 450°F



  • Maximum working pressure: 1000 W.O.G



  • All materials comply with applicable ASTM material specifications:

       Test and Inspection API 598

        ANSI/ASME B16. 11



Operating/Test Conditions

Schematic Diagram

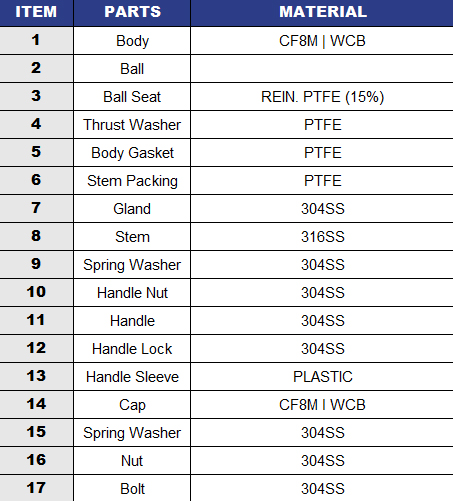

Materials & Measurements

Options





  • Available in 316 Stainless Steel Construction ASTM A351-CF8M



  • Available in Carbon Steel Construction ASTM A216-WCB



  • End Connections available in: NPT, Socketweld

  • Full Port Design

        Improves flow resulting in increased process efficiencies.



  • 3-Piece Design

        Swing-out design for easy maintenance.



  • Blow-out Proof Stem
    Stem is bottom loaded to prevent removal when valve is in service.



  • Locking Handle

        Enables plant personnel to secure valve in open or closed position when manually operated.



  • Investment Cast

        Improves dimensional control and reduces porosity.
