• 1 Piece Reduced Port NPT
• 1000 W.O.G.
• 316
• Size 1/4" to 2"
• Temp: -20° F to 450° F
• Locking Handle Standard

Economy Ball Valves

• 2-Piece Standard Port NPT
• 2000 W.O.G.
• 316 & Carbon Steel Body
• Size 1/4" to 2"
• Temp: -20° F to 450° F
• Locking Handle Standard

Series #10

Series #20

• 2-Piece Full Port NPT
• 1000 W.O.G.
• 316
• Size 1/4" to 3"
• Temp: -20° F to 450° F
• Locking Handle Standard

• ISO 5211 Direct Mount
• 2-Piece Full Port NPT
• 1000 W.O.G.
• 316
• Size 1/2" to 3"
• Temp: -20° F to 450° F
• Locking Handle Standard

Series #30

Series #DM30

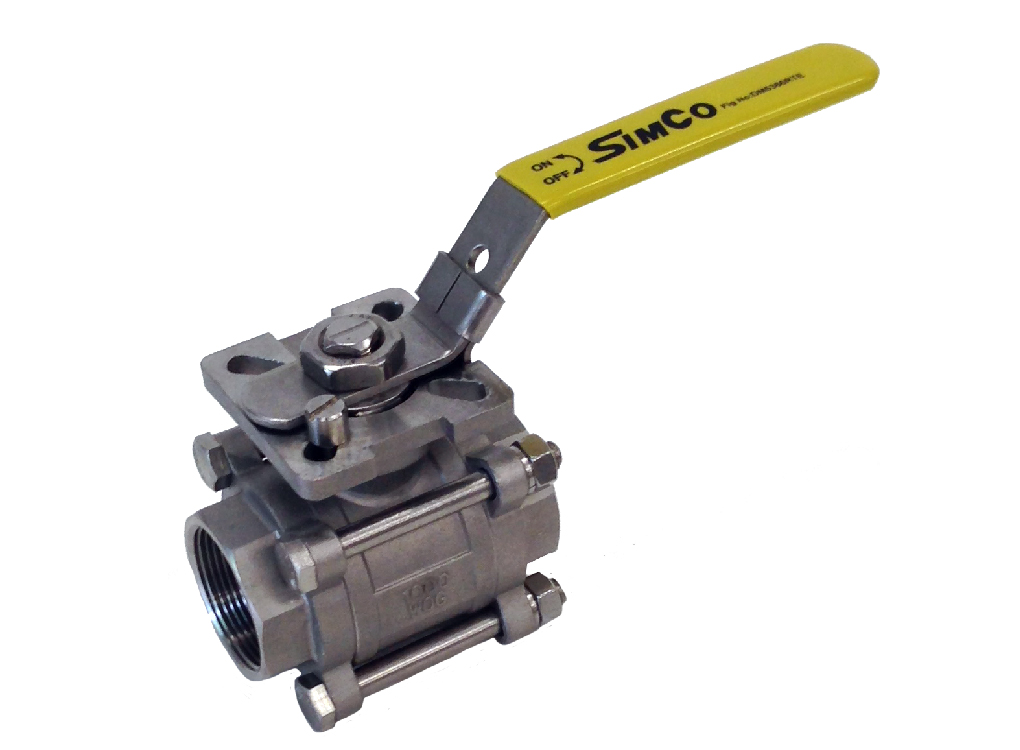

• ISO 5211 Direct Mount
• 3-Piece Full Port
• 1000 W.O.G.
• 316/WCB
• S.W/NPT ENDS
• Size 1/4" to 4"
• Temp: -20° F to 450° F
• Locking Handle Standard

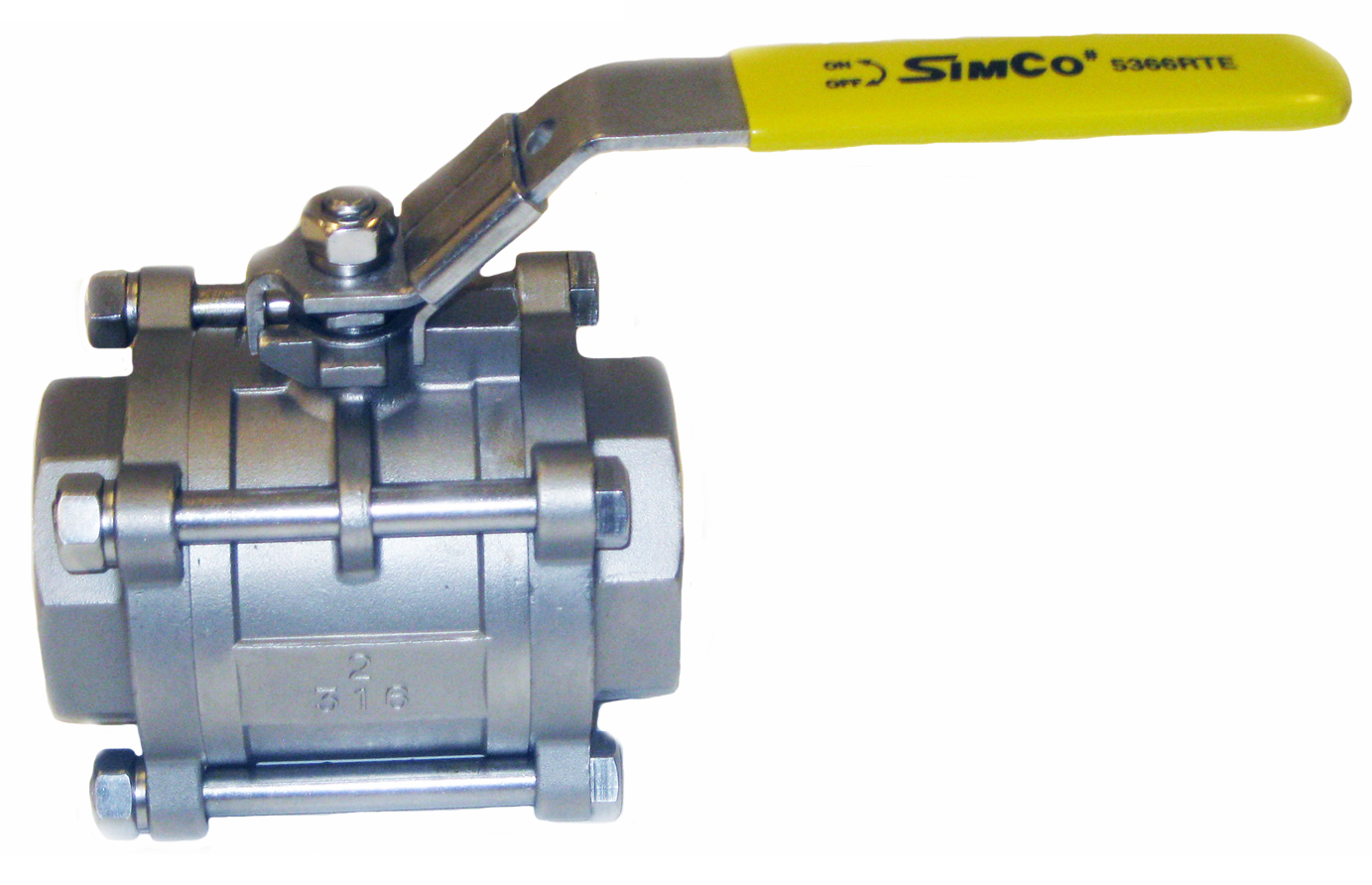

• 3-Piece Full Port
• 1000 W.O.G.
• 316 / WCB
• S.W. / NPT / B.W.
• Size 1/4" to 4"
• Temp: -20° F to 450° F
• Locking Handle Standard

Series #DM53

Series #53

• 3-Piece Full Port
• No Mounting Pad
• 1000 W.O.G.
• 316/WCB
• S.W./NPT ENDS
• Size 1/4" to 4"
• Temp: -20° F to 450° F
• Locking Handle Standard

Series #53-NM

• 2-Piece Full Port
• ANSI 150 Flanged End
• 316 / WCB
• Size 1/2" to 6"
• Temp: -20° F to 450° F

• API 607 5th Edition Tested & Certified
• 2-Piece Full Port
• ANSI 150 Flanged End
• 316 / WCB
• Size 1/2" to 6"
• Temp: -20° F to 450° F

Series #50

Series #FS50 - Fire Safe

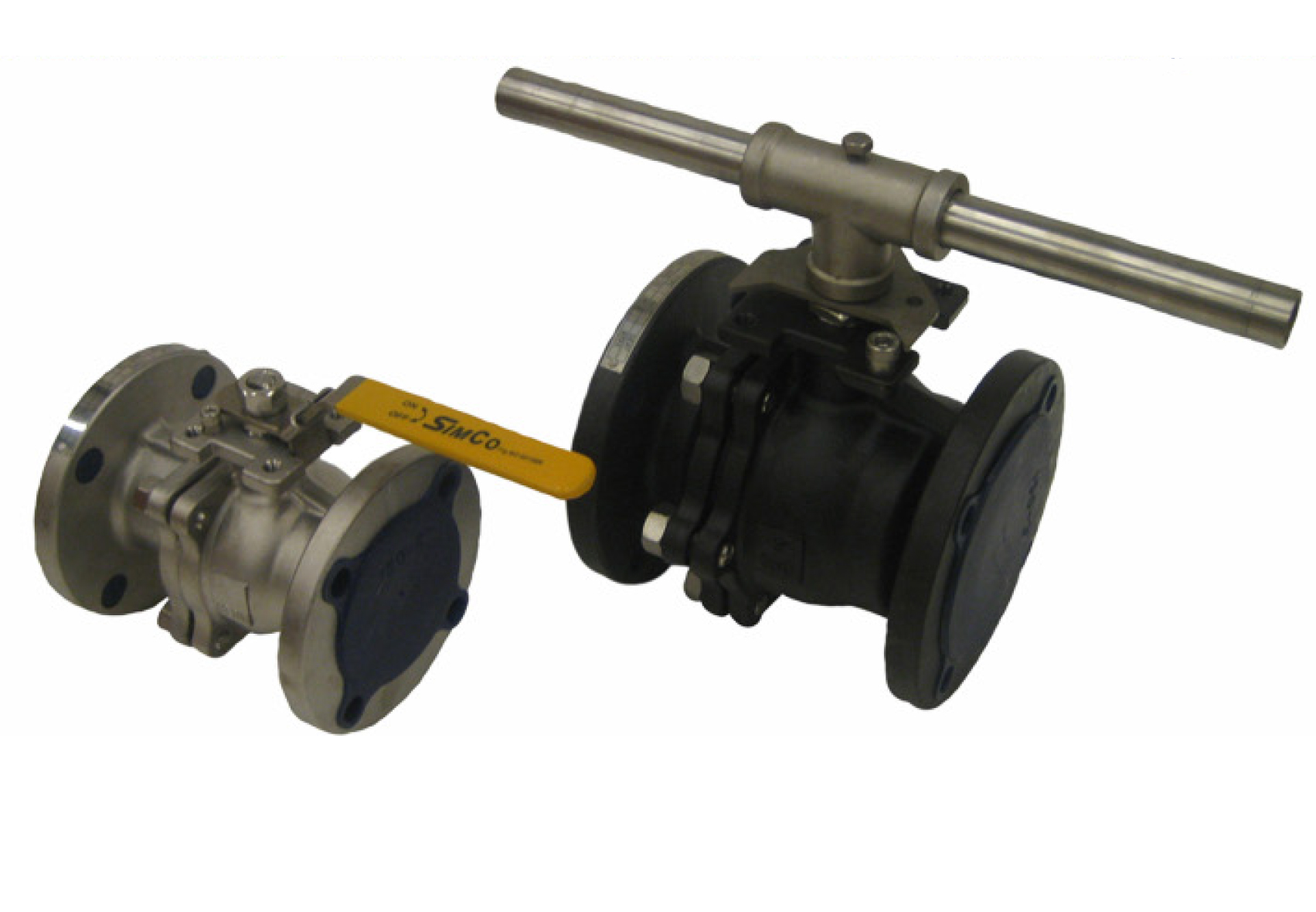

Flanged Ball Valves

• API 607 4th Edition Tested & Certified
• 3-Piece Full Port
• 2000 W.O.G.
• 316
• S.W. / NPT / B.W.
• Size 1/2" to 4"
• Locking Handle Standard

Series #FS 55

High Performance Fire Safe Ball Valves

• 3-Piece Tube Port
• 1000 W.O.G.
• 316
• Clamp End
• 240 Grit Standard
• Size 1/2" to 4"

Series #69

Sanitary Ball Valves

• Rack and Pinion Design
• Hard Anodized Aluminum Body
• & Epoxy Coated End Caps
• Spring Return and Double Acting

Series SV-Pneumatic Actuator

Valve Automation

• Gate Valve
• 200 PSI
• 316
• NPT / SW
• Size 1/2" to 2"
• Temp: -20° F to 350° F

• Globe Valve
• 200 PSI
• 316
• NPT / SW
• Size 1/2" to 2"
• Temp: -20° F to 350° F

• Swing Check Valve
• 200 PSI
• 316
• NPT / SW
• Size 1/2" to 3"
• Temp: -20° F to 350° F

• Flanged Gate Valve
• ANSI 150
• 316
• Size 1 1/2" to 14"

Series #31276

Series #41276

Series #21276

Series #36116

Gate, Globe & Check Valves

• Flanged Globe Valve
• ANSI 150
• 316
• Size 1 1/2" to 14"
• S

• Flanged Swing Check Valve
• ANSI 150
• 316
• Size 1" to 12"

Series #46116

Series #26116

• Multi Port Valves
• Cryogenic
• Oxygen Service
• Metal Seated
• Wafer / Dual Plate Check
• Knife Gate Valves
• Butterfly Valves
• Strainers

Special Order Valves

• Series #Y800-SS
• 800 PSI
• 316 Body, NPT ends.
• ½” thru 2” size range

Y800-SS Y-Strainer

Y800-SS Y-Strainer
