SERIES #46116
- Flanged Globe Valve
- ANSI 150
- 316
- Size 1 1/2" to 14"
- S
Features & Benefits
Outside Screw and Yoke
- Bolted Bonnet
- Rising Stem and Non-Rising Handwheel
- Flanged Ends Conform to ASME B16.5
Face to Face: ANSI B16.10
Wall Thickness: ANSI B16.34
- Test and Inspection to API 598
- Graphoil Packing for Long Valve Life and High Temperature Applications
Schematic Diagram

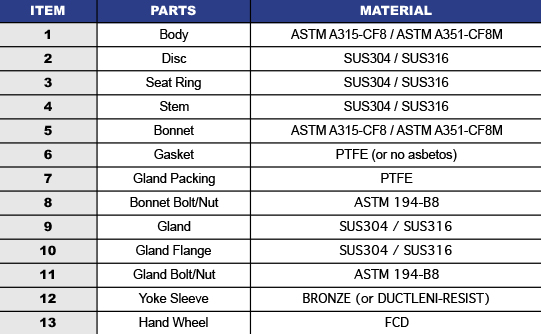

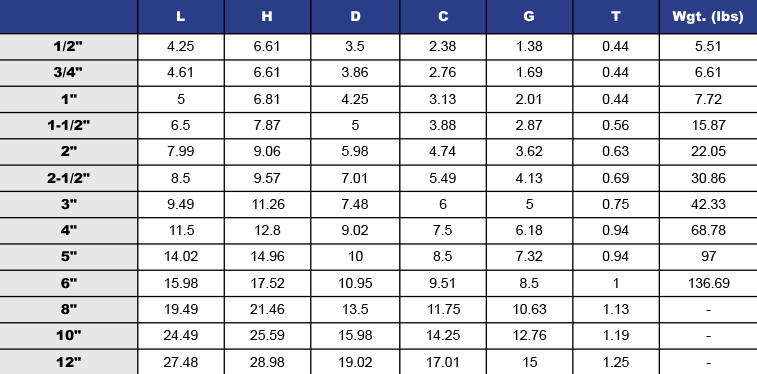

Materials & Measurements
![](92/9273723/3958D47275E6-9D34-C133-7E18-21E2D16AF924.jpg)
![](92/9273723/39580BF36C7B-67DE-8A9E-6BA1-DEB8FCFA1A4F.jpg)
Outside Screw and Yoke
- Bolted Bonnet
- Rising Stem and Non-Rising Handwheel
- Flanged Ends Conform to ASME B16.5
Face to Face: ANSI B16.10
Wall Thickness: ANSI B16.34
- Test and Inspection to API 598
- Graphoil Packing for Long Valve Life and High Temperature Applications
